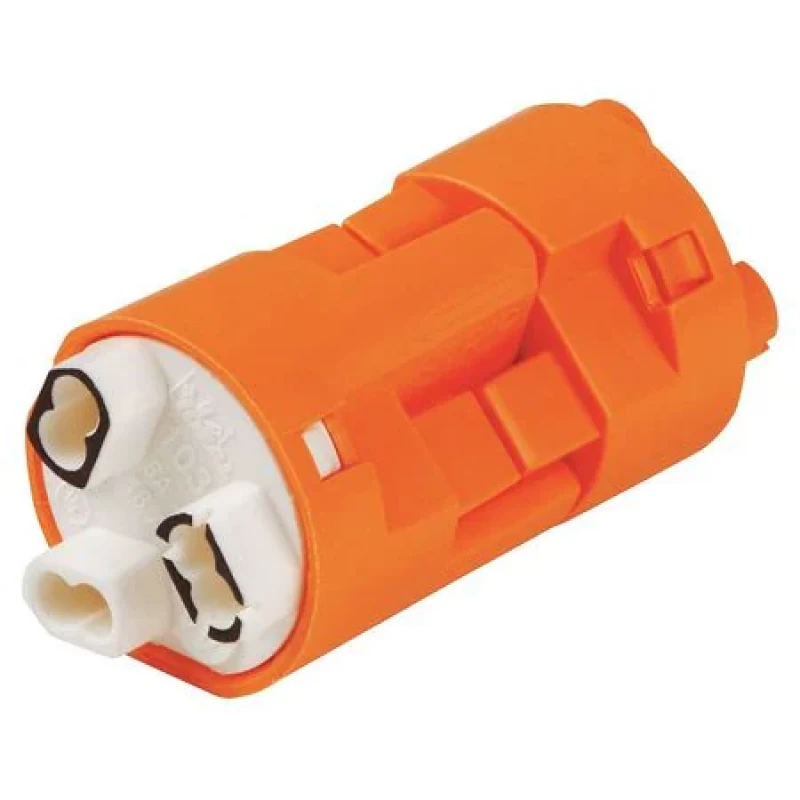

Ballast Dsconnct, Orng, 3 Ports, 1.50", PK20

IDEAL Part No : 30-383X

Ballast Disconnect, Number of Ports 3, Insulation Type Polycarbonate, Max. Voltage 600 V, Color Orange, Connection Type Push-In, Application New Installation or Retrofit, Max. Temp. 221 Degrees F, Overall Length 1.5 in, Connection Material Tin-Plated Brass, Standards CEC Part I Rule 30-308(4), CSA, NEC 410.130(G), NEC 410.73(G), UL, UL94V-0, Male/Female 3 Male/3 Female, Package Quantity 20

Ballast Disconnect, Number of Ports 3, Insulation Type Polycarbonate, Max. Voltage 600 V, Color Orange, Connection Type Push-In, Application New Installation or Retrofit, Max. Temp. 221 Degrees F, Overall Length 1.5 in, Connection Material Tin-Plated Brass, Standards CEC Part I Rule 30-308(4), CSA, NEC 410.130(G), NEC 410.73(G), UL, UL94V-0, Male/Female 3 Male/3 Female, Package Quantity 20


  • Wire Size: 18 to 12 AWG
  • Color: Orange
  • Connection Type: Push-In
  • Insulation Type: Polycarbonate
  • Overall Length: 1.5 in
  • Number of Ports: 3
  • Max. Temp.: 221 Degrees F
  • Max. Voltage: 600 V
  • Male/Female: 3 Male/3 Female
  • Connection Material: Tin-Plated Brass
  • Application: New Installation or Retrofit
