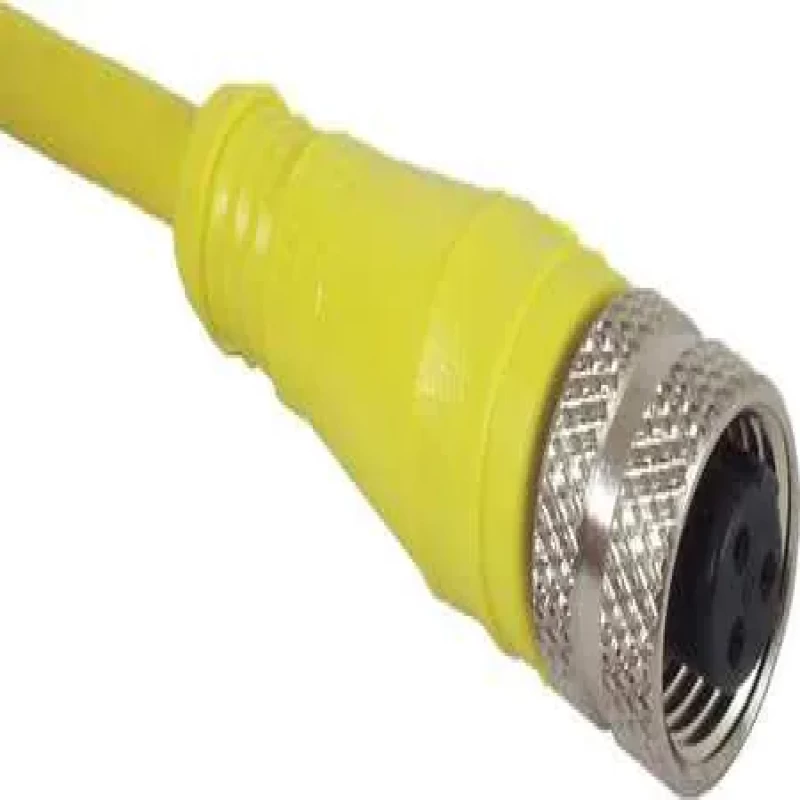

Cordset, 3 Pin, Receptacle, Female

IFM Part No : E18213

Cable Length: 5m
Jacket Color: Yellow
End 1 Number of Pins: 3
Max. Voltage: 300VAC/DC
End 1 Thread: 1/2-20
Wire Size: 22 AWG
End 1 Connection Type: Receptacle

Cordset, End 1 Number of Pins 3, End 1 Gender and Plug End Female Straight, End 2 Gender and Plug End Bare Wire, End 1 Keyway Dual, Cable Length 5 m, Jacket Color Yellow, Number of Conductors 3, End 1 Connection Type Receptacle, End 2 Connection Type Bare Wire, Max. Voltage 300V AC/DC, Features Gold-Plated Contacts, Max. Amps 4 A, Wire Size 22 AWG, Jacket Material PVC, IP Rating 67, Temp. Range -20 Degrees to 80 Degrees C, Standards UL and cULus Listed, End 1 Thread 1/2-20


  • Cable Length: 5m
  • Jacket Color: Yellow
  • End 1 Number of Pins: 3
  • Max. Voltage: 300VAC/DC
  • End 1 Thread: 1/2-20
  • Wire Size: 22 AWG
  • End 1 Connection Type: Receptacle
  • End 2 Connection Type: Bare Wire
  • Jacket Material: PVC
  • End 2 Gender and Plug End: Bare Wire
  • End 1 Keyway: Dual
  • Standards: UL and cULus Listed
  • End 1 Gender and Plug End: Female Straight
  • Temp. Range: -20 Degrees to 80 Degrees C
  • Features: Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
