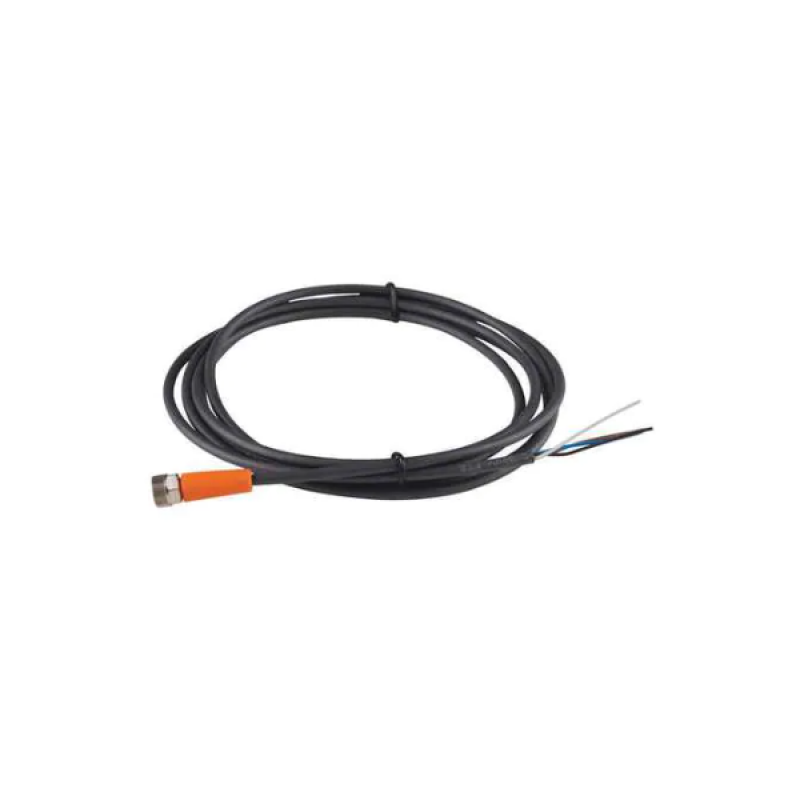

Cordset, 4 Pin, Receptacle, Female

IFM Part No : EVC150

Cordset, End 1 Number of Pins 4, End 1 Gender and Plug End Female Straight, End 2 Gender and Plug End Bare Wire, End 1 Keyway Single, Cable Length 2 m, Jacket Color Black, Number of Conductors 4, End 1 Connection Type Receptacle, End 2 Connection Type Bare Wire, Max. Voltage 50V AC/60V DC, Features Gold-Plated Contacts, Max. Amps 3 A, Wire Size 22 AWG, Jacket Material TPU, IP Rating 65,67,68,69K, Temp. Range -25 Degrees to 50 Degrees C, Standards cRUus Approval, End 1 Thread M8

Cordset, End 1 Number of Pins 4, End 1 Gender and Plug End Female Straight, End 2 Gender and Plug End Bare Wire, End 1 Keyway Single, Cable Length 2 m, Jacket Color Black, Number of Conductors 4, End 1 Connection Type Receptacle, End 2 Connection Type Bare Wire, Max. Voltage 50V AC/60V DC, Features Gold-Plated Contacts, Max. Amps 3 A, Wire Size 22 AWG, Jacket Material TPU, IP Rating 65,67,68,69K, Temp. Range -25 Degrees to 50 Degrees C, Standards cRUus Approval, End 1 Thread M8


  • Cable Length: 2m
  • Jacket Color: Black
  • End 1 Number of Pins: 4
  • Max. Voltage: 50VAC/60VDC
  • End 1 Thread: M8
  • Wire Size: 22 AWG
  • End 1 Connection Type: Receptacle
  • End 2 Connection Type: Bare Wire
  • Standards: cRUus Approval
  • Max. Amps: 3A
  • End 1 Gender and Plug End: Female Straight
  • IP Rating: IP65, IP67, IP68, IP69K
  • Jacket Material: TPU
  • Number of Conductors: 4
  • Temp. Range: -25 Degrees to 90 Degrees C
  • End 1 Keyway: Single
  • Features: Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
