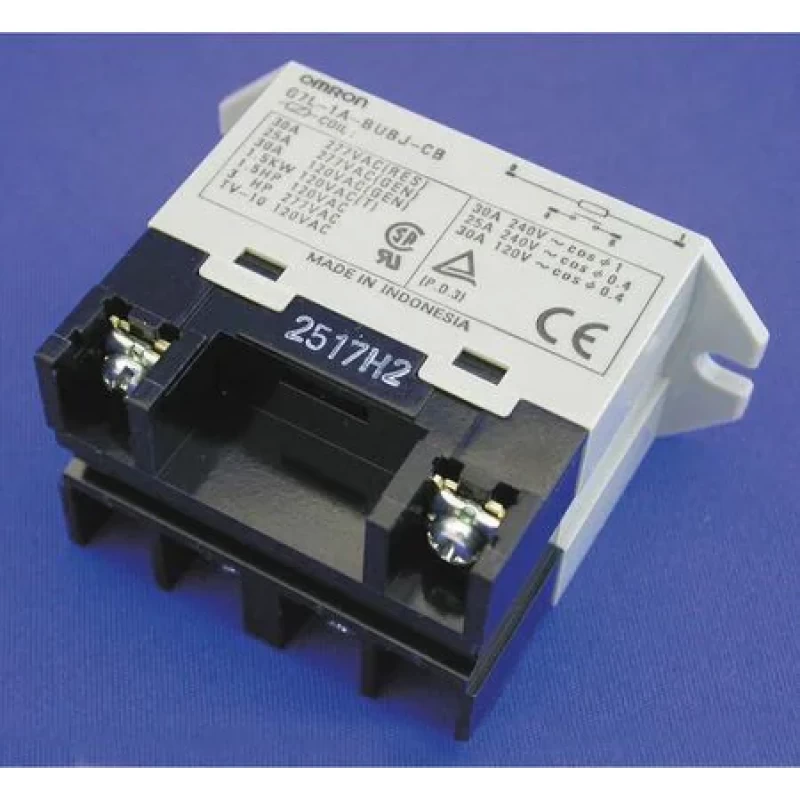

Enclosed Power Relay, 4 Pin, 12VDC, SPST-NO

Omron Part No : G7L-1A-BUBJ-CB-DC12

Item - Relay: Enclosed Power Relay

Coil Volts: 12V DC

AC Contact Rating - Relay: 30A @ 240V

  • Description
  • Specifications

Product specs for this Enclosed Power Relay include the following: CONTACT FORM: SPST-NO, COIL VOLTS: 12VDC, NUMBER OF POLES: 1


  • Coil Volts: 12V DC
  • AC Contact Rating - Relay: 30A @ 240V
  • Number of Pins - Relay: 4
  • Contact Form - Relay: SPST-NO
  • Mounting - Relay: Bottom Flange
  • Power Consumption - Relay: 1.9 W
  • Contact Material: Silver Alloy
  • Electrical Connection - Power Relay: Screw
  • Overall Height - Relay: 2.52 in
  • Body Height - Relay: 1.99 in
  • HP @ 120V: 1 1/2
  • HP @ 240V: 3
  • Dimensions: 1.99"H, 2.70"W, 1.36"D
  • Hz - Electrical: 50/60 Hz
  • Standards: CSA, Meets IEC950, TUV, UL
  • Number of Poles: 1
  • Electrical Connection: Screw
  • Contact Form: SPST-NO
  • Features: Flame-Resist, No Contact Chattering for Momentary Voltage Drops up to 50% of Rated Voltage
  • Contact Amp Rating (Resistive): 30A @ 220VAC
  • Body Depth - Relay: 1.36 in
  • Mounting: Flange, Top
  • Coil Rating: 2.5VA, 1.9W
  • Body Width - Relay: 2.7 in
  • Pins: 4
  • Item: Enclosed Power Relay
  • Contact Amp Rating (Inductive): 25A @ 220VAC

Related Products

View Now
General Purpose Relay, 120V AC Coil Volts, Octal, 8 Pin, DPDT
View Now
Time Delay Relay, 120VAC, 5A, DPDT, Socket
View Now
Latching Relay, 9 Pins, Square, 120VAC
View Now
Relay, 8Pin, DPDT, 10A, 24VAC
View Now
Relay, 4Pin, SPST, 10A, 24VAC
View Now
General Purpose Relay, 24V DC Coil Volts, Square, 8 Pin, DPDT
View Now
Relay Socket, Standard, Square, 11 Pin
View Now
Enclosed Power Relay, 6 Pin, 24VAC, DPST-NO
View Now
General Purpose Relay, 24V AC Coil Volts, Square, 8 Pin, DPDT

Suggested Products

View Now
20V 3/4" Hog Ring Retention Pin
View Now
1.6MM LC-LC DUPLEX-62.5UM OM1 1Meter
View Now
3M 4905 VHB Tape 3.25" x 72yd, Clear, 20 mil
View Now
1/4"-20 x 4" Zinc Plated Grade 5 Steel Coarse Thread Carriage Bolts 8PK
View Now
1.6MM LC-SC PC DUPLEX-50UM OM4 1Meter
View Now
3M 4949 VHB Tape 9" x 5yd, Black, 45 mil
View Now

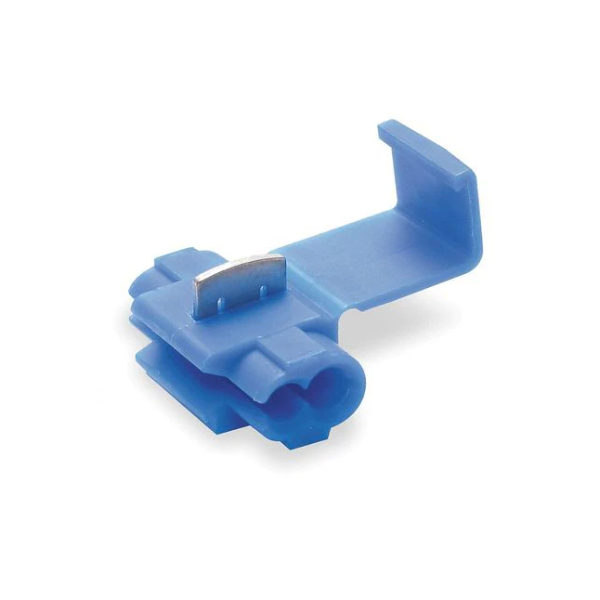

Displacement Connector, 18-14 AWG, PK50
