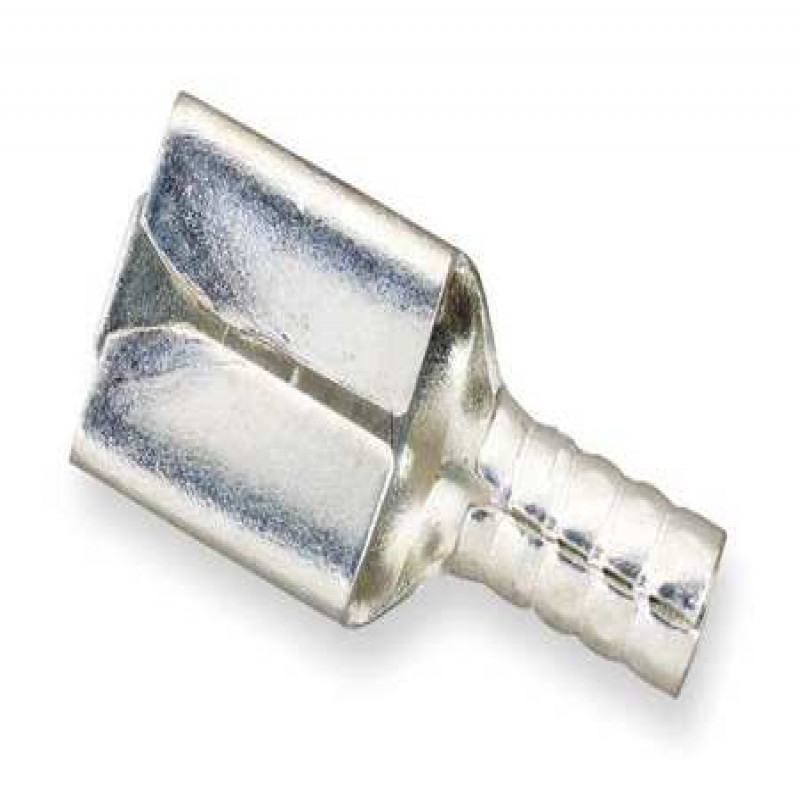

Female Disconnect, Bare, 22-18AWG, PK100

3M Part No : MU18-187DFX

Item: Female Disconnect

Insulation: None

Insulation Color: Bare

Female Disconnect, Insulation None, Insulation Type Bare, Insulation Color Bare, Wire Range 22 to 18 AWG, Tab Size 0.020 in x 0.187 in, Barrel Inside Dia. 0.085 in, Max. Temp. 347 Degrees F, Max. Voltage 600 V, Overall Length 0.58 in, Seam Butted, Connection Material Brass, Standards CSA Certified, RoHS Compliant, UL Listed, Connection Type Crimp, Package Quantity 100


  • Insulation: None
  • Insulation Color: Bare
  • Connection Type: Crimp
  • Insulation Type: Bare
  • Wire Range: 22 to 18 AWG
  • Tab Size: 0.020 in x 0.187 in
  • Overall Length: 0.58 in
  • Seam: Butted
  • Max. Voltage: 600 V
  • Max. Temp.: 347 Degrees F
  • Barrel Inside Dia.: 0.085 in
  • Standards: CSA Certified, RoHS Compliant, UL Listed
  • Connection Material: Brass
