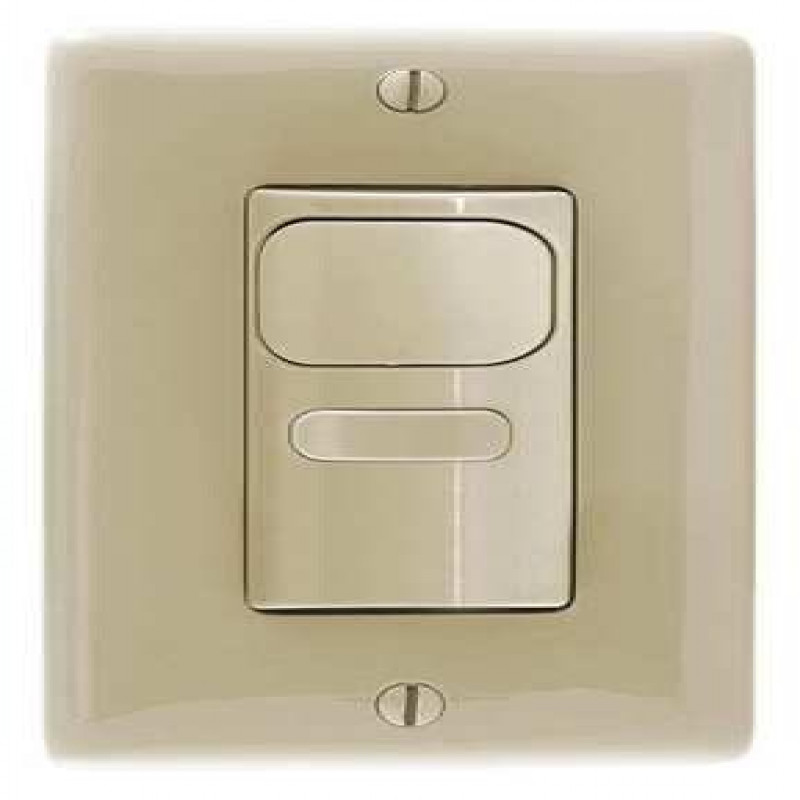

Occ/Vac Sensor, PIR, 1000sq.ft., Ivory

Hubbell Part No : AP2000I1

Item - Motion Sensing and Dimming: Motion Sensor

Communication Method - Motion Sensing and Dimming: Hard Wired

Sensing Technology: Passive Infrared

Motion Sensor, Item - Motion Sensing and Dimming Motion Sensor, Communication Method - Motion Sensing and Dimming Hard Wired, Sensing Technology Passive Infrared, Installation Location - Motion Sensor Wall Switch Box, Coverage at Suggested Mounting Height 1,000 sq ft, Operating Voltage - Motion Sensing and Dimming 120V AC, 277V AC, Color - Motion Sensing and Dimming Ivory, Time Delay - Motion Sensor 4 to 30 min, Time Delay Adjustment Method - Motion Sensor Adaptive, Digital


  • Communication Method - Motion Sensing and Dimming: Hard Wired
  • Sensing Technology: Passive Infrared
  • Installation Location - Motion Sensor: Wall Switch Box
  • Coverage at Suggested Mounting Height: 1,000 sq ft
  • Operating Voltage - Motion Sensing and Dimming: 120V AC, 277V AC
  • Color - Motion Sensing and Dimming: Ivory
  • Time Delay Adjustment Method - Motion Sensor: Adaptive, Digital
  • Time Delay - Motion Sensor: 4 to 30 min
  • Description/Special Features: (1) Relay, Adaptive Technology, Install and Forget Operation
  • Installation Type: Wall
  • For Use With: Incandescent, LED and Fluorescent Lighting Loads
  • Green Environmental Attribute: Product Contributes To Reducing Energy Consumption
  • Suggested Mounting Height - Motion Sensor: 3 ft 6 in to 4 ft 6 in
  • Max. Capacity @ 277VAC: 1800W (Fluorescent, Incandescent, LED)
  • Color: Ivory
  • Lighting Technology: Fluorescent, Incandescent, LED
  • Max. Capacity @ 120VAC: 1/4 HP Motor, 1000W (Fluorescent), 800W (Incandescent)
  • Voltage: 120/277VAC
  • Coverage: 1000 sq. ft.
  • Item: Occupancy/Vacancy Sensor
  • Timer Range: 4 to 30 min.
  • Standards: cULus Listed
  • Coverage Angle - Motion Sensor: 180 Degrees
  • Viewing Angle: 180 Degrees
  • Sensor Type: Passive Infrared
  • Watts @ 277V: 1800
  • Watts @ 120V: 800/1000
