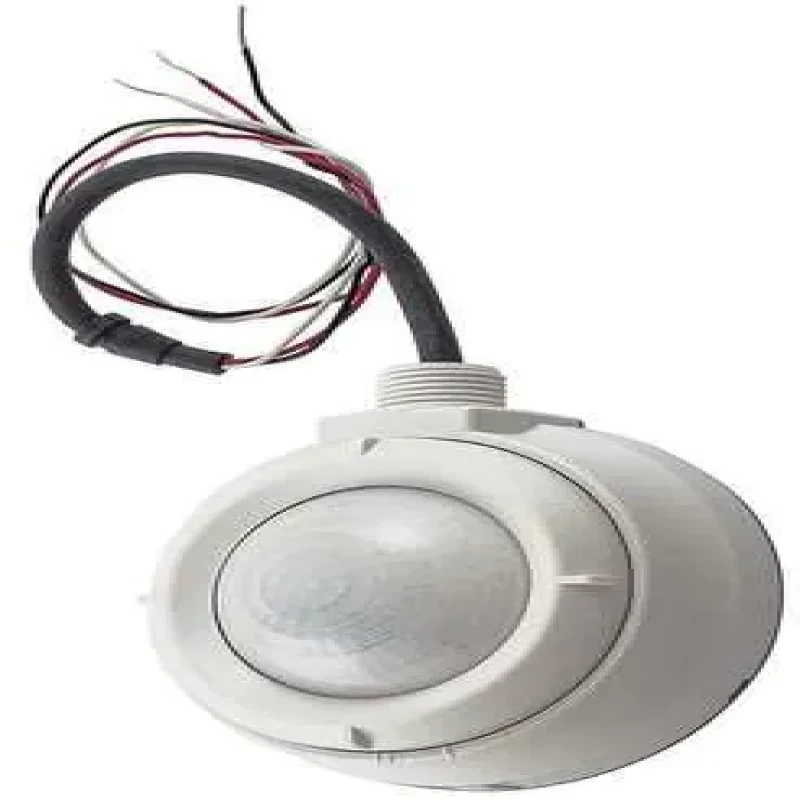

Occupancy Sensor, (2)Relay, 120 to 347VAC

Hubbell Part No : HMHB229

Use With - Motion Sensing and Dimming: High Bay Fixtures

Item - Motion Sensing and Dimming: Occupancy Sensor

Communication Method - Motion Sensing and Dimming: Hard Wired

Occupancy Sensor, Item - Motion Sensing and Dimming Occupancy Sensor, Communication Method - Motion Sensing and Dimming Hard Wired, Sensing Technology Passive Infrared, Installation Location - Motion Sensor Fixture Mount, Coverage at Suggested Mounting Height 500 sq ft, Operating Voltage - Motion Sensing and Dimming 120 to 347V AC, Color - Motion Sensing and Dimming White, Time Delay - Motion Sensor 4 to 90 min, Time Delay Adjustment Method - Motion Sensor Manual

  • Use With - Motion Sensing and Dimming: High Bay Fixtures
  • Item - Motion Sensing and Dimming: Occupancy Sensor
  • Communication Method - Motion Sensing and Dimming: Hard Wired
  • Sensing Technology: Passive Infrared
  • Installation Location - Motion Sensor: Fixture Mount
  • Coverage at Suggested Mounting Height: 500 sq ft
  • Operating Voltage - Motion Sensing and Dimming: 120 to 347V AC
  • Color - Motion Sensing and Dimming: White
  • Time Delay Adjustment Method - Motion Sensor: Manual
  • Time Delay - Motion Sensor: 4 to 90 min
  • Standards: ETL, Title 24 Certified, UL STD 916
  • For Use With: High Bay Fixtures
  • Max. Capacity @ 120VAC: 800W (Fluorescent)
  • Description/Special Features: (2) Relay, Direct Mount, Low Bay Requires Replacement Lens
  • Operating Temp. Range: 32 Degrees to 149 Degrees F
  • Max. Capacity @ 277VAC: 1200W (Fluorescent)
  • Color: White
  • Compatible With: Fluorescent Fixtures
  • Suggested Mounting Height - Motion Sensor: Up to 45 ft
  • Lighting Technology: Fluorescent
  • Item: Occupancy Sensor
  • Coverage Angle - Motion Sensor: 180 Degrees
