Photoelectric-Sensor-Cylinder-Thru-Beam-OG0039

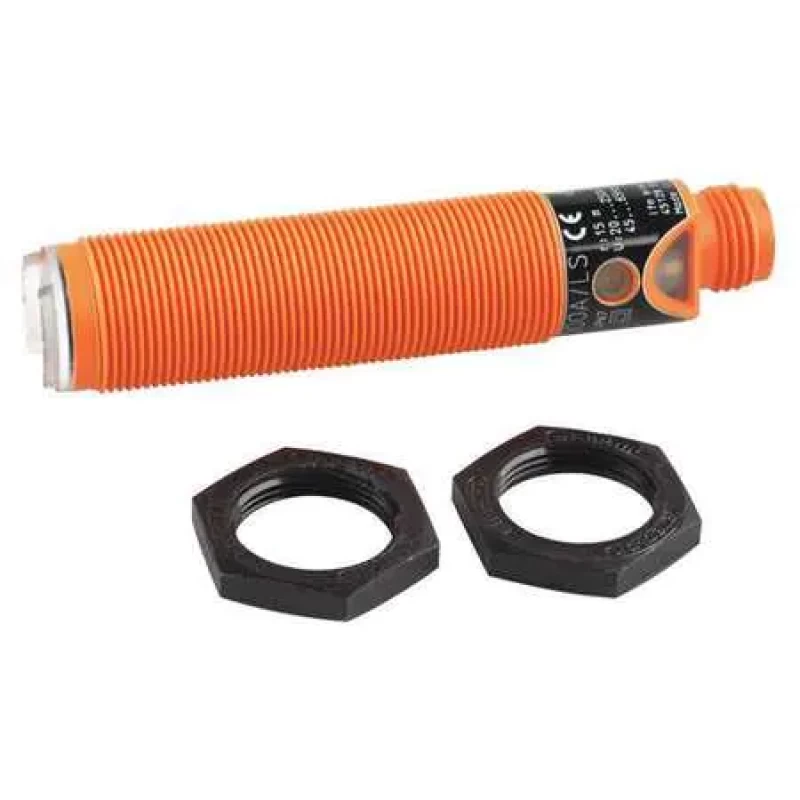

Photoelectric Sensor, Cylinder, Thru-Beam

IFM Part No : OG0039

Item: Cylindrical Photoelectric Sensor Receiver

IP Rating: 67

Operating Mode - Photoelectric Sensor: Dark On

Description
Specifications

Cylindrical Photoelectric Sensor Receiver, Sensing Method - Cylindrical Photoelectric Sensor Through Beam Receiver, Operating Mode - Photoelectric Sensor Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 20 to 250V AC/DC, Electrical Connection - Cylindrical Photoelectric Sensor 3-Pin 1/2 in Male Connector, Circuit Type - Cylindrical Photoelectric Sensor AC, Max. Sensing Distance - Cylindrical Photoelectric Sensor 15.0 m

IP Rating: 67
Operating Mode - Photoelectric Sensor: Dark On
Max. Load Current: 180 mA
Operating Frequency: 25 Hz
Electrical Connection: Quick Disconnect 1/2" Connector
Circuit Type - Cylindrical Photoelectric Sensor: AC
Electrical Connection - Cylindrical Photoelectric Sensor: 3-Pin 1/2 in Male Connector
Diameter - Cylindrical Photoelectric Sensor: 18 mm
Shape: Cylindrical
Sensing Method - Cylindrical Photoelectric Sensor: Through Beam Receiver
Light Source: Infrared LED
Max. Sensing Distance: 15m
Power Requirement - Cylindrical Photoelectric Sensor: 20 to 250V AC/DC
Body Material: PBT
Features: PMMA Lens
Operating Temp. Range: -25 Degrees to 80 Degrees C
Diameter: 18mm
Length - Cylindrical Photoelectric Sensor: 86 mm
NEMA Rating: Not Rated
Max. Sensing Distance - Cylindrical Photoelectric Sensor: 15.0 m
Standards: CE Approval
Length: 86.00mm
Power Requirement: 20 to 250VAC/DC
Sensing Method: Through Beam Receiver
Operation Mode: Dark On

Photoelectric Sensor, Cylinder, Thru-Beam
