Photoelectric Sensor, Cylindrical, Diffuse

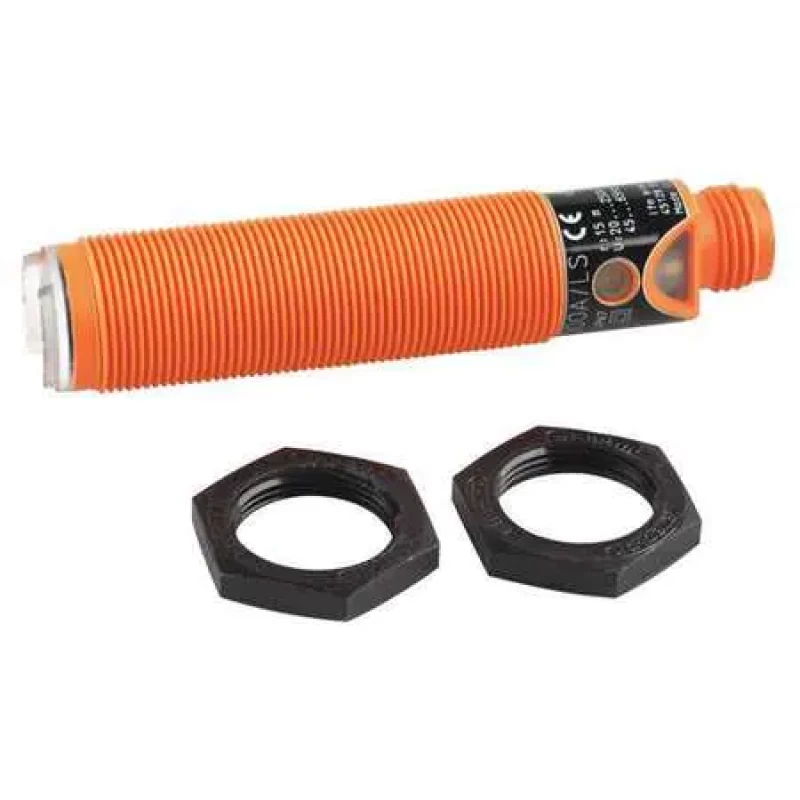

Photoelectric Sensor, Cylindrical, Diffuse

IFM Part No : OG0035

Circuit Type: AC

IP Rating: 67

Operating Mode - Photoelectric Sensor: Light On

Max. Load Current: 180 mA

Description
Specifications

Cylindrical Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Diffuse, Operating Mode - Photoelectric Sensor Light On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 20 to 250V AC/DC, Electrical Connection - Cylindrical Photoelectric Sensor 3-Pin 1/2 in Male Connector, Circuit Type - Cylindrical Photoelectric Sensor AC, Max. Sensing Distance - Cylindrical Photoelectric Sensor 600 mm

Circuit Type: AC
IP Rating: 67
Operating Mode - Photoelectric Sensor: Light On
Max. Load Current: 180 mA
Operating Frequency: 25 Hz
Electrical Connection: Quick Disconnect 1/2" Connector
NEMA Rating: Not Rated
Length: 86.00mm
Max. Sensing Distance - Cylindrical Photoelectric Sensor: 600 mm
Circuit Type - Cylindrical Photoelectric Sensor: AC
Electrical Connection - Cylindrical Photoelectric Sensor: 3-Pin 1/2 in Male Connector
Length - Cylindrical Photoelectric Sensor: 86 mm
Min. Object Size: 169mm dia Light Spot
Shape: Cylindrical
Features: PMMA Lens
Sensing Method: Diffuse
Power Requirement - Cylindrical Photoelectric Sensor: 20 to 250V AC/DC

Related Products

Proximity Sensor, Capacitive, 15mm, NC

Proximity Sensor, Capacitive, 8mm, NC

Proximity Sensor, Inductive, 8mm, NO

Proximity Sensor, Inductive, 12mm, NO

Proximity Sensor, Inductive, 12mm, PNP, NO

Proximity Sensor, Inductive, 4mm, NO

Cordset, 5 Pin, Receptacle, Female

Proximity Sensor, Inductive, 12mm, PNP, NO

Photoelectric Sensor, Rt Angle, Reflective

Suggested Products

High Temp. RTV Silicone Sealant, 300 mL, Red, Temp Range -75 to 600 Degrees F

Socket Set, Socket Size Range 3/8 in to 1 1/4 in, Hand, Drive Size 1/2 in, SAE, 12-Point

3M 4950 VHB Tape 1.625" x 5yd, White, 45 mil

Lockout Station, Filled, Ylw, Keyed Diff

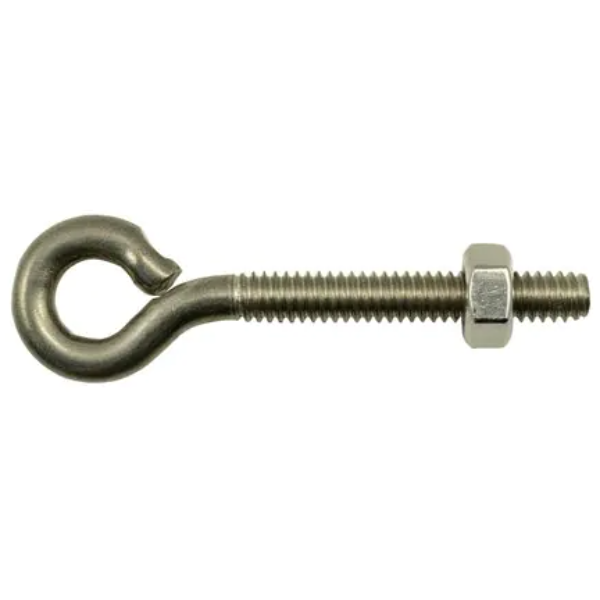

1/4"-20 x 2-5/8" 18-8 Stainless Steel Coarse Thread Eyebolt 10PK
