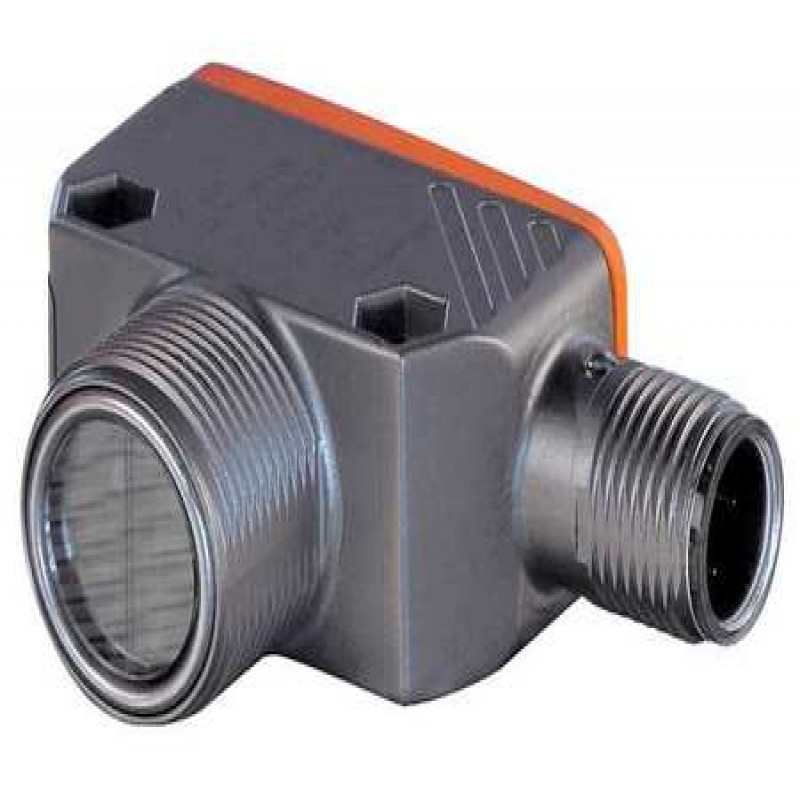

Photoelectric Sensor, Right Angle, Diffuse

IFM Part No : OGH581

Sensing Method - Rectangular Photoelectric Sensor: Diffuse
Circuit Type: NPN
Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC
Output Circuit Type - Rectangular Photoelectric Sensor: NPN
Width: 18.00mm

  • Description
  • Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Right Angle, Sensing Method - Rectangular Photoelectric Sensor Diffuse, Power Requirement - Rectangular Photoelectric Sensor 10 to 30V DC, Output Circuit Type - Rectangular Photoelectric Sensor NPN, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 200 mm, Electrical Connection - Rectangular Photoelectric Sensor 4-Pin M12 Male Connector

  • IP Rating: 67
  • Sensing Method - Rectangular Photoelectric Sensor: Diffuse
  • Circuit Type: NPN
  • Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC
  • Output Circuit Type - Rectangular Photoelectric Sensor: NPN
  • Width: 18.00mm
  • Depth: 52.00mm
  • Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
  • Max. Load Current: 200 mA
  • Max. Sensing Distance - Rectangular Photoelectric Sensor: 200 mm
  • Electrical Connection - Rectangular Photoelectric Sensor: 4-Pin M12 Male Connector
  • Operating Frequency: 1,000 Hz
  • Electrical Connection: Quick Disconnect M12 Connector
  • Height - Rectangular Photoelectric Sensor: 35 mm
  • Length: 35.40mm
  • NEMA Rating: Not Rated
  • Sensing Method: Diffuse
  • Depth - Rectangular Photoelectric Sensor: 52 mm
  • Shape: Right Angle
  • Standards: CE Approval, CUL Listed
  • Operation Mode: Selectable Light On/Dark On
  • Operating Temp. Range: -25 Degrees to 60 Degrees C
  • Body Material: Zinc Alloy
  • Features: PEI Lens, Reverse Polarity and Overload Protection
  • Width - Rectangular Photoelectric Sensor: 18 mm
  • Power Requirement: 10 to 30VDC
  • Light Source: Red LED
  • Min. Object Size: 13mm dia Light Spot
  • Max. Sensing Distance: 200mm
