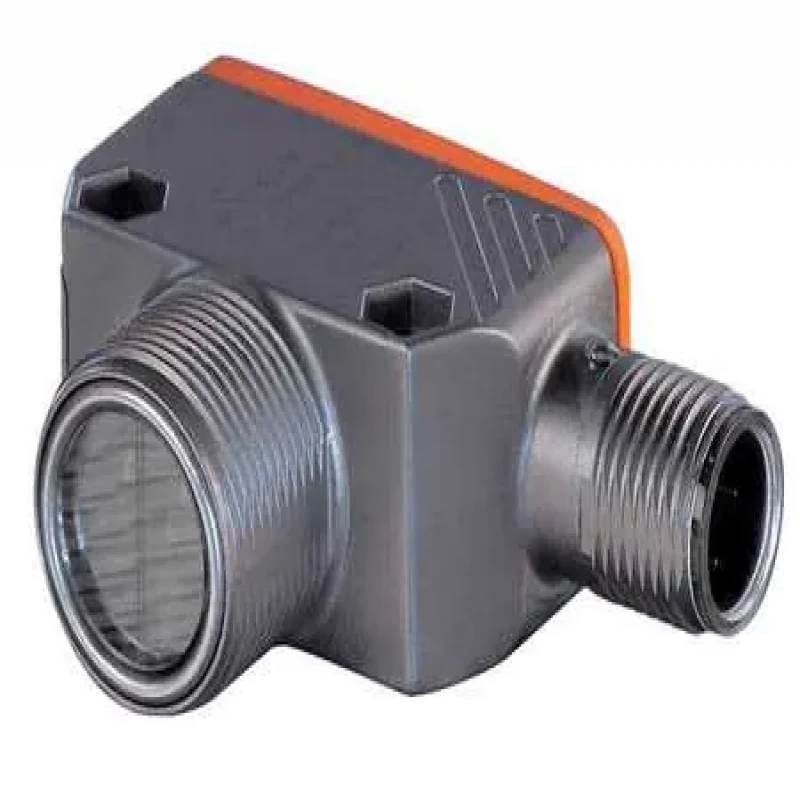

Photoelectric-Sensor-Rt-Angle-Reflective-OGP282

Photoelectric Sensor, Rt Angle, Reflective

IFM Part No : OGP282

Item: Photoelectric Sensor

Circuit Type: NPN

IP Rating: 67

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Right Angle, Sensing Method - Rectangular Photoelectric Sensor Retroreflective, Power Requirement - Rectangular Photoelectric Sensor 10 to 30V DC, Output Circuit Type - Rectangular Photoelectric Sensor NPN, Operating Mode - Photoelectric Sensor Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 4.0 m, Electrical Connection - Rectangular Photoelectric Sensor 4-Pin M12 Male Connector

Item: Photoelectric Sensor
Circuit Type: NPN
IP Rating: 67
Sensing Method - Rectangular Photoelectric Sensor: Retroreflective
Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC
Output Circuit Type - Rectangular Photoelectric Sensor: NPN
Width: 18.00mm
Depth: 52.00mm
Operating Mode - Photoelectric Sensor: Dark On
Max. Load Current: 200 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor: 4 m
Electrical Connection - Rectangular Photoelectric Sensor: 4-Pin M12 Male Connector
Operating Frequency: 1,000 Hz
Height - Rectangular Photoelectric Sensor: 35 mm
Electrical Connection: Quick Disconnect M12 Connector
Power Requirement: 10 to 30VDC
Shape: Right Angle
Features: PMMA Lens, Reverse Polarity and Overload Protection
Standards: CE Approval, CUL Listed, UL Listed
Width - Rectangular Photoelectric Sensor: 18 mm
Operation Mode: Dark On
Depth - Rectangular Photoelectric Sensor: 52 mm
Body Material: EPDM, LCP, Metal Alloy, PA
Min. Object Size: 160mm dia Light Spot
Light Source: Red LED
Max. Sensing Distance: 4m
Length: 35.40mm
NEMA Rating: Not Rated
Sensing Method: Retroreflective
Operating Temp. Range: -25 Degrees to 60 Degrees C

Photoelectric Sensor, Rt Angle, Reflective
