Photoelectric-Sensor-Rt-Angle-Thru-Beam-OGE281

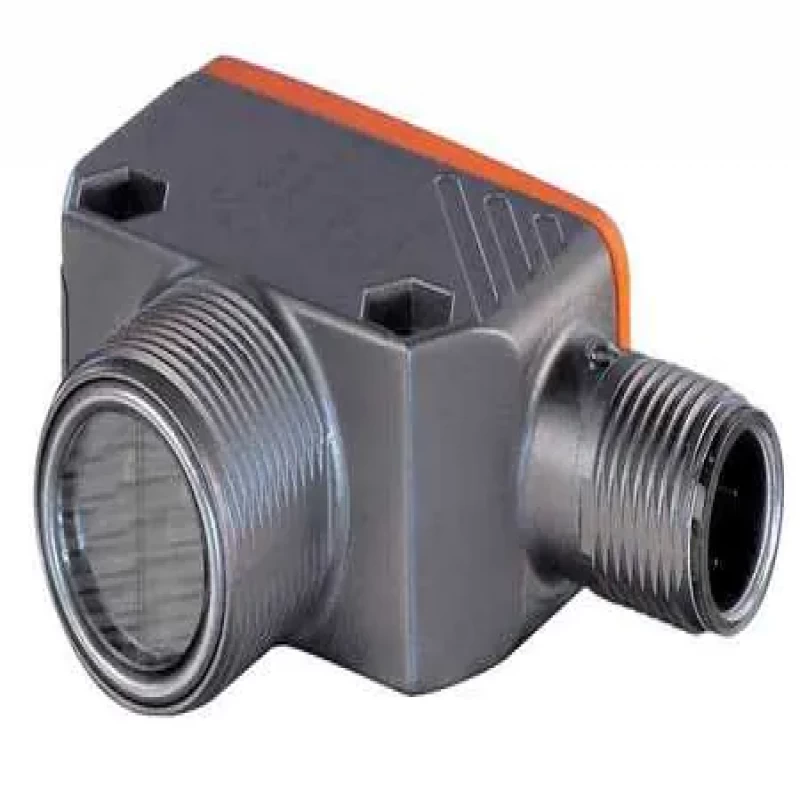

Photoelectric Sensor, Rt Angle, Thru-Beam

IFM Part No : OGE281

Circuit Type: PNP

Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC

Output Circuit Type - Rectangular Photoelectric Sensor: PNP

Width: 18.00mm

Operating Mode - Photoelectric Sensor: Light On

Depth: 52.00mm

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Right Angle, Sensing Method - Rectangular Photoelectric Sensor Through Beam Receiver, Power Requirement - Rectangular Photoelectric Sensor 10 to 30V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Light On, Max. Sensing Distance - Rectangular Photoelectric Sensor 20.0 m, Electrical Connection - Rectangular Photoelectric Sensor 4-Pin M12 Male Connector

IP Rating: 67
Sensing Method - Rectangular Photoelectric Sensor: Through Beam Receiver
Circuit Type: PNP
Power Requirement - Rectangular Photoelectric Sensor: 10 to 30V DC
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Width: 18.00mm
Operating Mode - Photoelectric Sensor: Light On
Depth: 52.00mm
Max. Sensing Distance - Rectangular Photoelectric Sensor: 20 m
Max. Load Current: 200 mA
Electrical Connection - Rectangular Photoelectric Sensor: 4-Pin M12 Male Connector
Operating Frequency: 1,000 Hz
Electrical Connection: Quick Disconnect M12 Connector
Height - Rectangular Photoelectric Sensor: 35 mm
Length: 35.40mm
Depth - Rectangular Photoelectric Sensor: 52 mm
Shape: Right Angle
Operation Mode: Light On
Max. Sensing Distance: 20m
Power Requirement: 10 to 30VDC
Standards: CE Approval, CUL Listed, UL Listed
Operating Temp. Range: -25 Degrees to 60 Degrees C
Light Source: Red LED
Body Material: EPDM, LCP, Metal Alloy, PA
Sensing Method: Through Beam Receiver
NEMA Rating: Not Rated
Features: PMMA Lens, Reverse Polarity and Overload Protection

Photoelectric Sensor, Rt Angle, Thru-Beam
