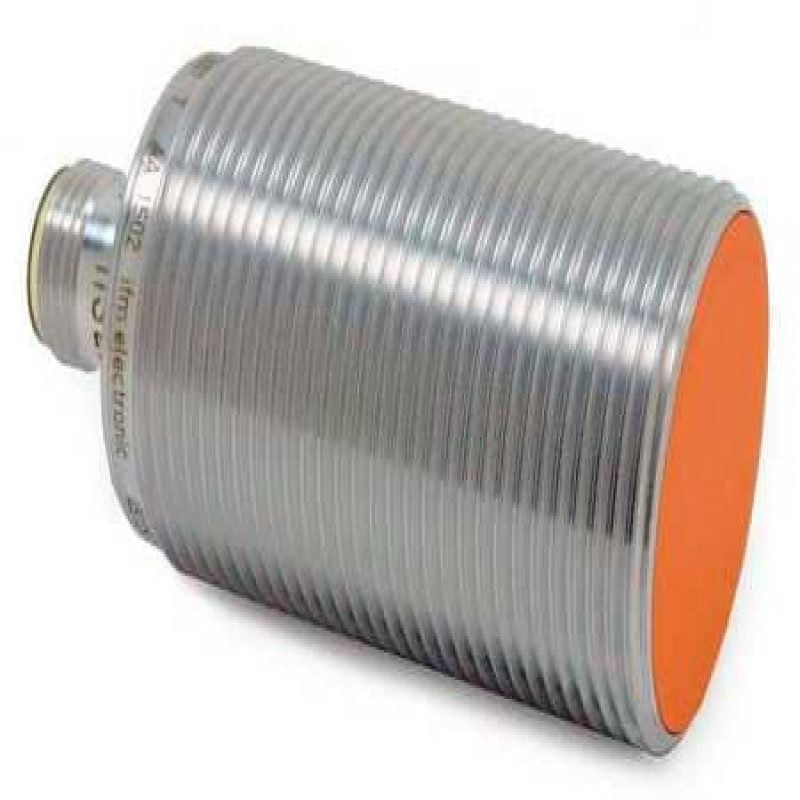

Cylindrical Proximity Sensor, Inductive, 30.0 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 15.0 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating 65, 66, 67, 68, 69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
- Proximity Sensor Style: Cylindrical Proximity Sensor
- Item: Cylindrical Proximity Sensor
- Proximity Sensing Method: Inductive
- Proximity Sensor Power Requirement: 10 to 30V DC
- Proximity Sensor Output Circuit Type: 3 Wire PNP
- Output Mode: NC
- Proximity Sensor Diameter: 30.0 mm
- Length: 60 mm
- Max. Detecting Distance: 15.0 mm
- Proximity Sensor Electrical Connection: 4 Pin M12 Connector
- Basic Proximity Sensor Case Material: Metal
- Shielded / Unshielded: Shielded
- Case Material: Brass White Bronze Coated
- Proximity Sensor Operating Frequency: 100 Hz
- IP Rating: 65, 66, 67, 68, 69K
- Standards: CUL Listed
- Description/Special Features: Overload And Short Protection
- Includes: (2) Lock Nuts
- Max. Current Load: 100mA
- Operating Temp. Range: -40 Degrees to 185 Degrees F
- Length (Straight Wireway): 60 mm
