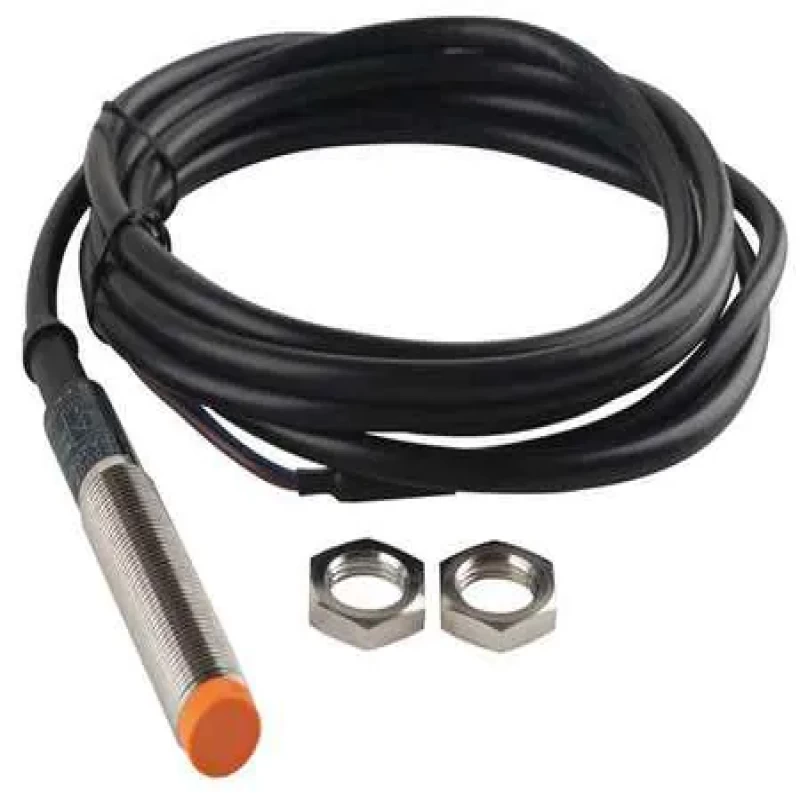

Proximity Sensor, Inductive, 4mm, NO

IFM Part No : IF0302

Item: Cylindrical Proximity Sensor
Proximity Sensing Method: Inductive
Proximity Sensor Power Requirement: 20 to 250V AC
Proximity Sensor Output Circuit Type: 2 Wire
Output Mode: NO
Proximity Sensor Diameter: 12.0 mm
Length: 91 mm

Cylindrical Proximity Sensor, Inductive, 12.0 mm, Proximity Sensor Power Requirement 20 to 250V AC, Unshielded, Proximity Sensor Operating Frequency 25 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 4.0 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating 67, Case Material Brass White Bronze Coated, Length 91 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250mA, Description/Special Features Red LED Output Indication

  • Item: Cylindrical Proximity Sensor
  • Proximity Sensing Method: Inductive
  • Proximity Sensor Power Requirement: 20 to 250V AC
  • Proximity Sensor Output Circuit Type: 2 Wire
  • Output Mode: NO
  • Proximity Sensor Diameter: 12.0 mm
  • Length: 91 mm
  • Max. Detecting Distance: 4.0 mm
  • Proximity Sensor Electrical Connection: 2m Cable
  • Shielded / Unshielded: Unshielded
  • Basic Proximity Sensor Case Material: Metal
  • Case Material: Brass White Bronze Coated
  • Proximity Sensor Operating Frequency: 25 Hz
  • Operating Temp. Range: -13 Degrees to 158 Degrees F
  • Standards: CE Compliance
  • IP Rating: 67
  • Description/Special Features: Red LED Output Indication
  • Includes: (2) Lock Nuts
  • Max. Current Load: 250mA
