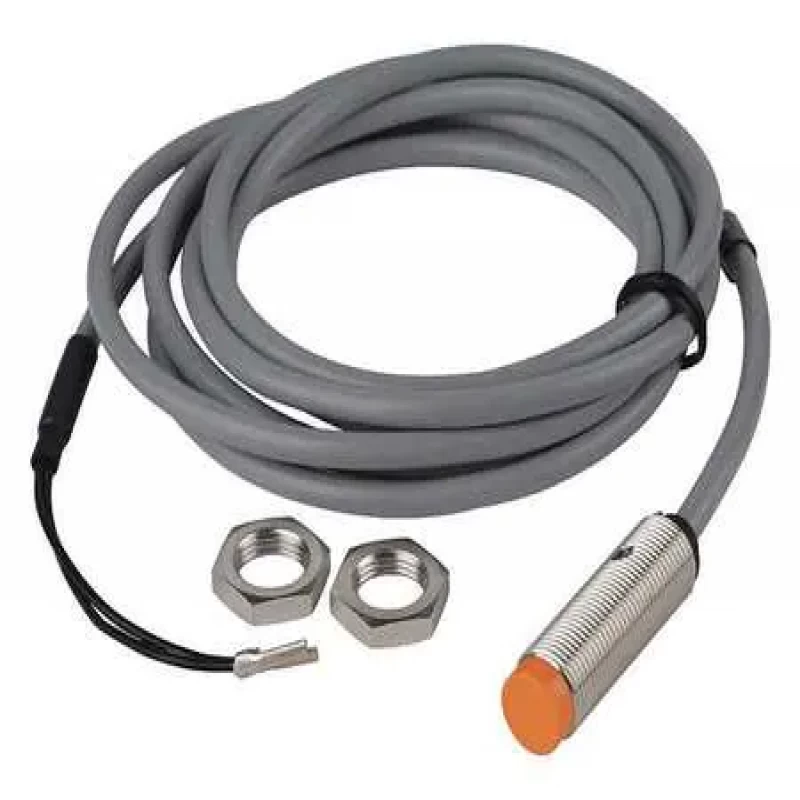

Cylindrical Proximity Sensor, Inductive, 12.0 mm, Proximity Sensor Power Requirement 10 to 36V DC, Unshielded, Proximity Sensor Operating Frequency 1,500 Hz, Proximity Sensor Output Circuit Type 2 Wire PNP/NPN, Max. Detecting Distance 4.0 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 6, IP Rating 67, Case Material Brass White Bronze Coated, Length 40 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 150mA
- Item: Cylindrical Proximity Sensor
- Proximity Sensor Style: Cylindrical Proximity Sensor
- Proximity Sensing Method: Inductive
- Proximity Sensor Power Requirement: 10 to 36V DC
- Proximity Sensor Output Circuit Type: 2 Wire PNP/NPN
- Output Mode: NO
- Length: 40 mm
- Proximity Sensor Diameter: 12.0 mm
- Max. Detecting Distance: 4.0 mm
- Proximity Sensor Electrical Connection: 2m Cable
- Shielded / Unshielded: Unshielded
- Basic Proximity Sensor Case Material: Metal
- Proximity Sensor Operating Frequency: 1,500 Hz
- Case Material: Brass White Bronze Coated
- Includes: (2) Lock Nuts
- Operating Temp. Range: -13 Degrees to 176 Degrees F
- Standards: CE Compliance
- Description/Special Features: Non-Flush Mountable, Yellow LED Output Indication
- Max. Current Load: 150mA
- NEMA Rating: 6
- IP Rating: 67
- Length (Straight Wireway): 40 mm
