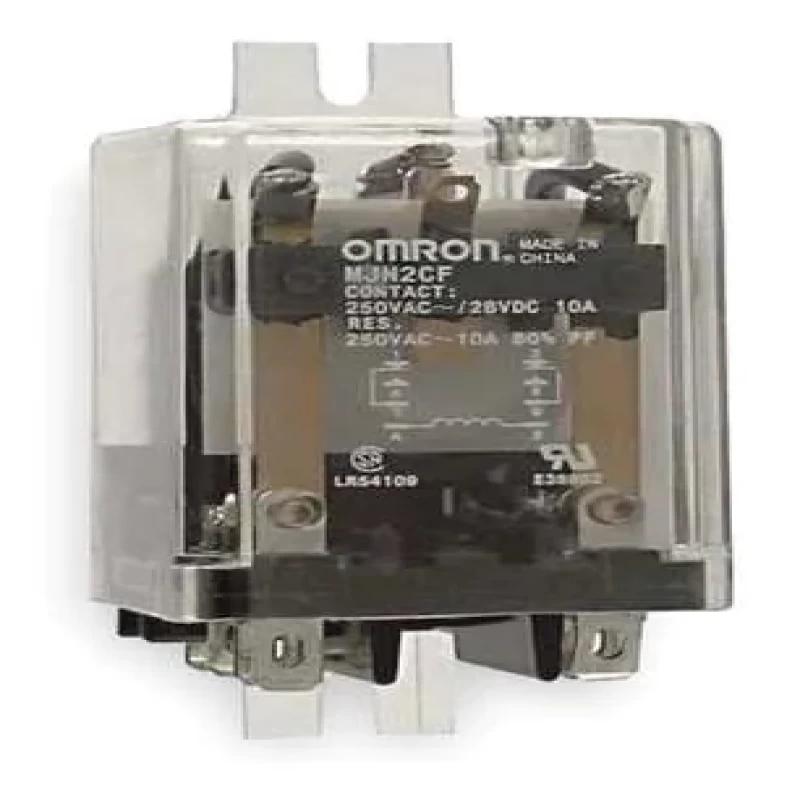

Relay, 8Pin, DPDT, 10A, 240VAC

Omron Part No : MJN2CF-AC240

Item: Flange Mount Relay

Item - Relay: Flange Mount Relay

Coil Volts: 240V AC

  • Description
  • Specifications

Flange Mount Relay, Coil Volts 240V AC, AC Contact Rating - Relay 10A @ 240V, DC Contact Rating - Relay 10A @ 28V, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Side Flange, Power Consumption - Relay 1.7 VA, Contact Material Silver Alloy, Status Indicator No, Electrical Connection 0.187 in Solder Terminals

  • Item - Relay: Flange Mount Relay
  • Coil Volts: 240V AC
  • AC Contact Rating - Relay: 10A @ 240V
  • DC Contact Rating - Relay: 10A @ 28V
  • Number of Pins - Relay: 8
  • Power Consumption - Relay: 1.7 VA
  • Contact Form - Relay: DPDT
  • Mounting - Relay: Side Flange
  • Contact Material: Silver Alloy
  • HP @ 120V: 1/3 hp
  • HP @ 240V: 1/2 hp
  • Status Indicator: No
  • Body Depth - Relay: 1.4 in
  • Mounting: Side
  • Body Width - Relay: 1.53 in
  • Contact Rating: 10A @ 240VAC/28VDC
  • Body Height - Relay: 1.9 in
  • Electrical Connection: 0.187 in Solder Terminals
  • Pins: 8
  • Overall Height - Relay: 2.9 in
  • Features: General Purpose Relays, Non-Latching
  • Standards: CSA Certified, UL Listed
  • Contact Form: DPDT
