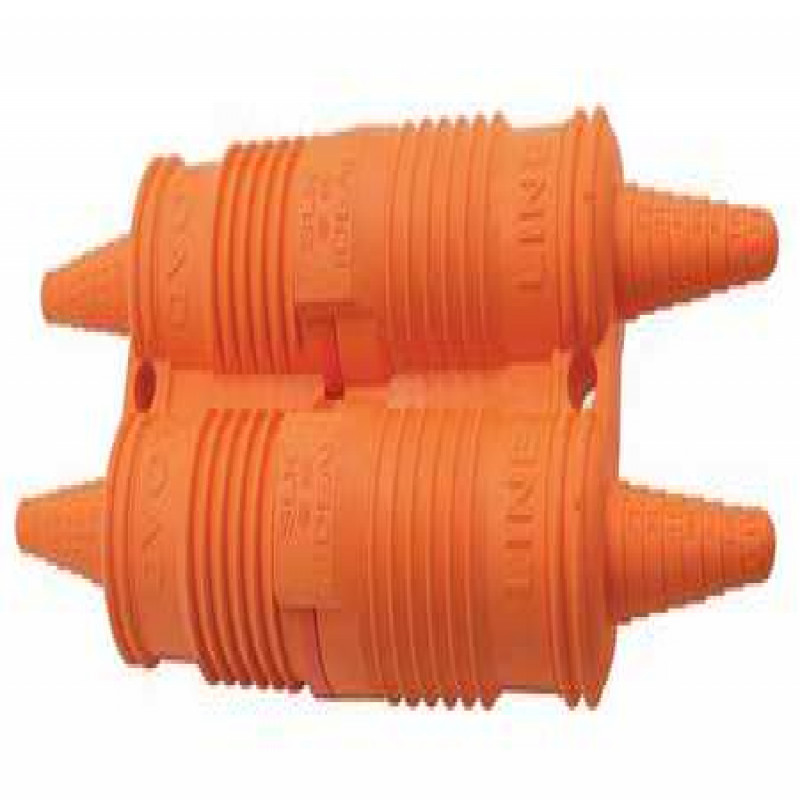

St Lght Dscnnct, Breakaway, Fused, Y-Tap

IDEAL Part No : 30-B2216

Item: Street Light Disconnect

Style: Y-Tap

Insulation: Polypropylene, TPE

Street Light Disconnect, Connection Type Combination Primary - Set Screw/Secondary - Crimp, Breakaway, Style Y-Tap, Design Fused, Primary Connections/Pole 2, Primary Wire Range 2 to 14 AWG, Secondary Connections/Pole 1, Secondary Wire Range 6 to 14 AWG, Color Orange, Max. Temp. 105 Degrees C, Max. Voltage 600V AC, Overall Length 8 1/2 in, Insulation Polypropylene, TPE, Connection Material Tin-Plated Brass


  • Style: Y-Tap
  • Insulation: Polypropylene, TPE
  • Breakaway/Non-Breakaway: Breakaway
  • Color: Orange
  • Primary Wire Range: 2 to 14 AWG
  • Connection Type: Combination Primary - Set Screw/Secondary - Crimp
  • Overall Length: 8 1/2 in
  • Design: Fused
  • Secondary Wire Range: 6 to 14 AWG
  • Max. Voltage: 600V AC
  • Secondary Connections/Pole: 1
  • Max. Temp.: 105 Degrees C
  • Primary Connections/Pole: 2
  • Connection Material: Tin-Plated Brass
  • Standards: UL 486A/B; AUL 486D; UL 498; UL 1682; Conforms to AASHTO's Roadway Lighting Design Guide, Chapter 8, Oct. 2005
