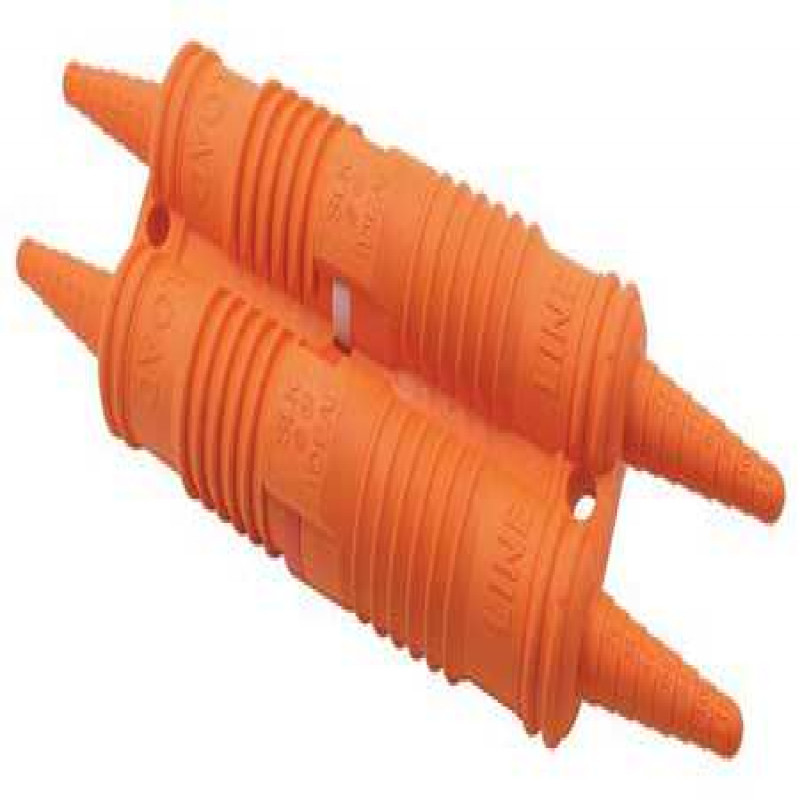

St Lght Dscnnct, Crimp, Dual InLine, Paired

IDEAL Part No : 30-C1616P

Street Light Disconnect, Connection Type Crimp, Breakaway, Style Dual In-Line, Design Paired (One Fused/One Non-Fused), Primary Connections/Pole 1, Primary Wire Range 6 to 14 AWG, Secondary Connections/Pole 1, Secondary Wire Range 6 to 14 AWG, Color Orange, Max. Temp. 105 Degrees C, Max. Voltage 600V AC, Overall Length 8 1/2 in, Insulation Polypropylene, TPE, Connection Material Tin-Plated Brass

Street Light Disconnect, Connection Type Crimp, Breakaway, Style Dual In-Line, Design Paired (One Fused/One Non-Fused), Primary Connections/Pole 1, Primary Wire Range 6 to 14 AWG, Secondary Connections/Pole 1, Secondary Wire Range 6 to 14 AWG, Color Orange, Max. Temp. 105 Degrees C, Max. Voltage 600V AC, Overall Length 8 1/2 in, Insulation Polypropylene, TPE, Connection Material Tin-Plated Brass

  • Item: Street Light Disconnect
  • Breakaway/Non-Breakaway: Breakaway
  • Insulation: Polypropylene, TPE
  • Color: Orange
  • Primary Wire Range: 6 to 14 AWG
  • Connection Type: Crimp
  • Overall Length: 8 1/2 in
  • Design: Paired (One Fused/One Non-Fused)
  • Secondary Wire Range: 6 to 14 AWG
  • Max. Voltage: 600V AC
  • Max. Temp.: 105 Degrees C
  • Secondary Connections/Pole: 1
  • Primary Connections/Pole: 1
  • Connection Material: Tin-Plated Brass
  • Standards: UL 486A/B; AUL 486D; UL 498; UL 1682; Conforms to AASHTO's Roadway Lighting Design Guide, Chapter 8, Oct. 2005
