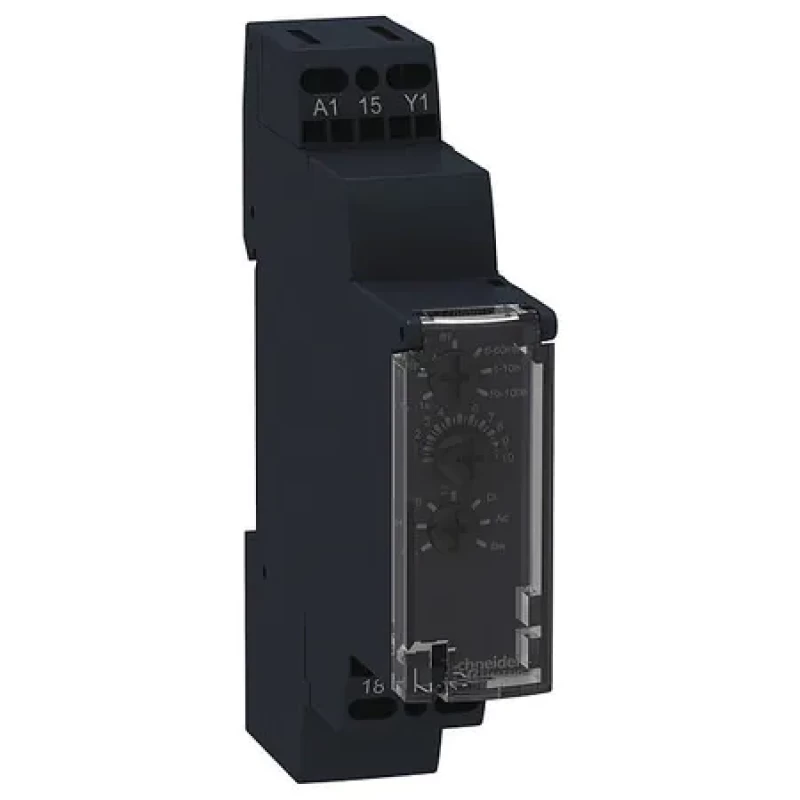

Time Delay Relay, 12VAC/DC Coil

schneider Part No : RE17RMJU

Item - Relay: Multi-Function Timing Relay

Function - Timing Relay: Multifunction

Coil Volts: 12V AC/DC

  • Description
  • Specifications

Time Delay Relay, Function - Timing Relay Multifunction, Coil Volts 12V AC/DC, AC Contact Rating - Relay 8A @ 12V, DC Contact Rating - Relay 8A @ 12V, Number of Pins - Relay 6, Mounting - Relay DIN Rail, Contact Form - Relay SPDT, Power Consumption - Relay 0.7 VA, Adjustment Method - Timer Rotary Dip Switch, Status Indicator LED, Contact Material Cadmium Free


  • Function - Timing Relay: Multifunction
  • Coil Volts: 12V AC/DC
  • AC Contact Rating - Relay: 8A @ 12V
  • DC Contact Rating - Relay: 8A @ 12V
  • Number of Pins - Relay: 6
  • Adjustment Method - Timer: Rotary Dip Switch
  • Mounting - Relay: DIN Rail
  • Contact Form - Relay: SPDT
  • Power Consumption - Relay: 0.7 VA
  • Hz - Electrical: 50 Hz, 60 Hz
  • Status Indicator: LED
  • Standards: 2004/108/EC, 2006/95/EC, CSA, CULus, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, GL, IEC 61812-1
  • Body Height - Relay: 3.54 in
  • Contact Material: Cadmium Free
  • Overall Height - Relay: 3.54 in
