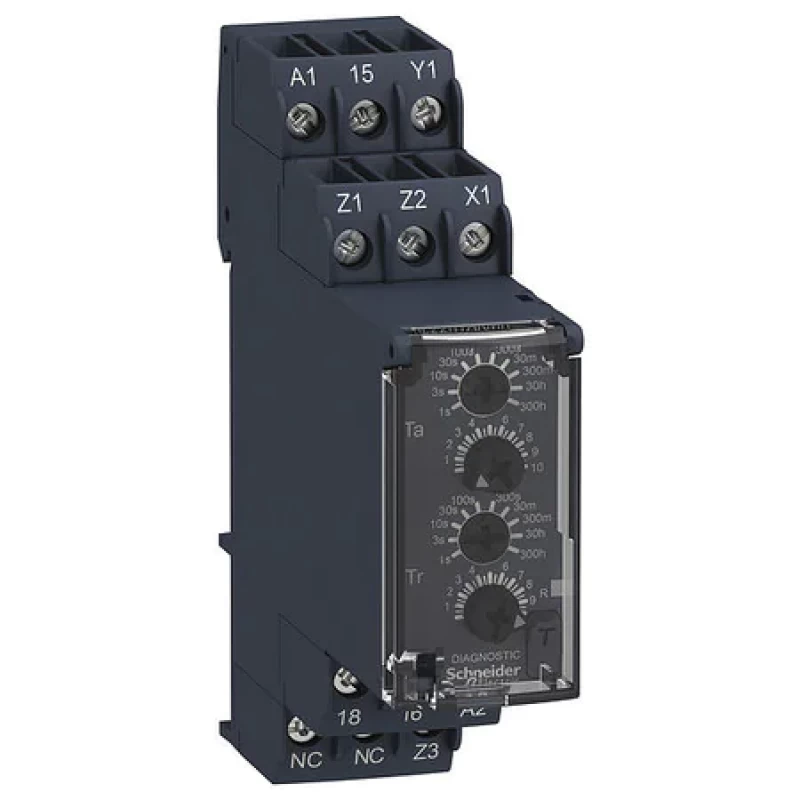

Time Delay Relay, 24 to 240VAC/DC Coil

schneider Part No : RE22R1AKMR

Item - Relay: Multi-Function Timing Relay

Function - Timing Relay: Off/On Delay

Coil Volts: 24 to 240V AC/DC

  • Description
  • Specifications

Time Delay Relay, Function - Timing Relay Off/On Delay, Coil Volts 24 to 240V AC/DC, AC Contact Rating - Relay 8A @ 250V, Number of Pins - Relay 6, Mounting - Relay DIN Rail, Power Consumption - Relay 3.0 VA, Adjustment Method - Timer Rotary Dip Switch, Max. Time Setting - Timer 12 day 12 hr, Status Indicator LED, Contact Material Cadmium Free


  • Function - Timing Relay: Off/On Delay
  • Coil Volts: 24 to 240V AC/DC
  • AC Contact Rating - Relay: 8A @ 250V
  • Number of Pins - Relay: 6
  • Mounting - Relay: DIN Rail
  • Adjustment Method - Timer: Rotary Dip Switch
  • Power Consumption - Relay: 3.0 VA
  • Max. Time Setting - Timer: 12 day 12 hr
  • Item: Time Delay Relay
  • Socket: Not Applicable
  • Standards: IEC 61812-1, UL 508
  • Electrical Connection: Screw
  • Body Width - Relay: 0.89 in
  • Status Indicator: LED
  • Body Height - Relay: 3.54 in
  • Overall Height - Relay: 3.54 in
  • Body Depth - Relay: 3.03 in
  • Hz - Electrical: 50 Hz, 60 Hz
  • Contact Material: Cadmium Free

Related Products

View Now
Rlay Scket, Standrd, Square, 14 Pin, 2.71" L
View Now
Rly Sockt, Stndrd, Squre, 8 Pin, Scrw Clamp
View Now
Relay Socket, Standard, Square, 8 Pin, 16A
View Now
Rly Sckt, Fingr Saf, Squae, 5 Pin, Scrw Clmp
View Now
Open Power Relay, 8 Pin, 120VAC, DPDT
View Now
Relay Socket, Standard, Square, 5 Pin, 16A
View Now
Relay Socket, Standrd, Octal, 8 Pin, 2.12" L
View Now
Rlay Scket, Fingr Safe/Elvtr, Squre, 11 Pin
View Now
Relay Socket, Finger Safe, Square, 8 Pin

Suggested Products

View Now
3MM SC-SC APC DUPLEX 5Meter
View Now
6mm-1.0 x 8mm x 47mm x 30mm Plain Class 12.9 Steel Coarse Thread Hex Socket Head Shoulder Screws 4PK
View Now
Programmable Relay, 12-24VDC
View Now
Adjustable Bail Handle
View Now
Hi-Tack Gasket Sealant, 12 oz. Can
View Now
Lockout Padlock, KA, Green, 1-7/8"H
View Now
1/4"-20 x 2" Zinc Plated Steel Coarse Thread Eye Bolts 15PK
View Now

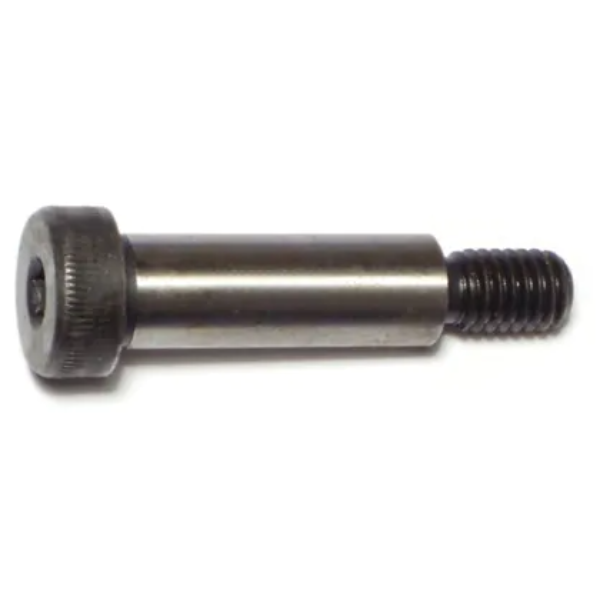

1/2" x 3/8" x 2-7/16" Plain Steel Coarse Thread Socket Head Shoulder Screws 2PK
