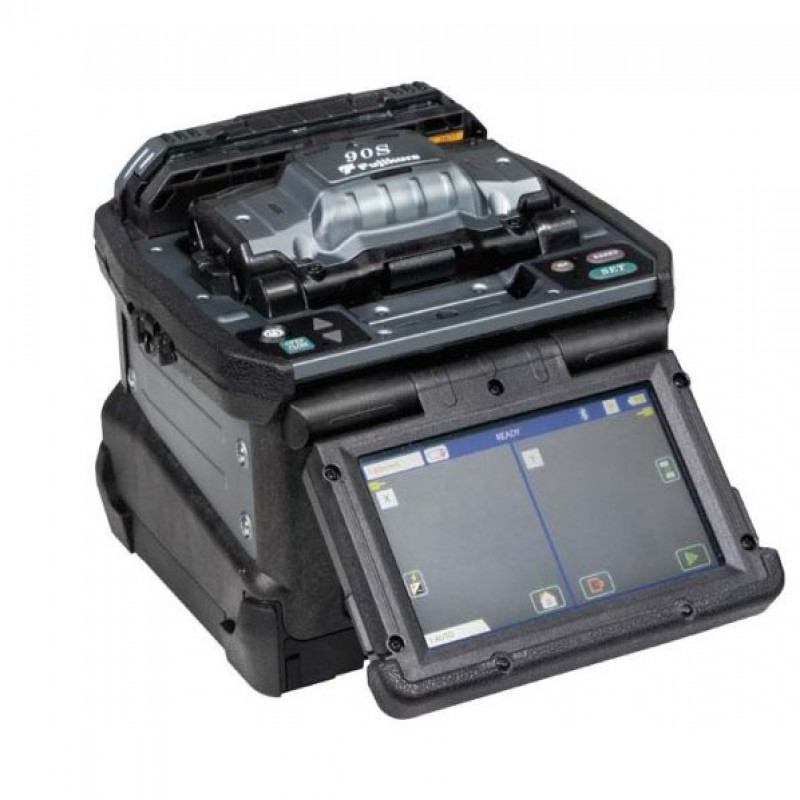

90S Fusion Splicer Kit with Bluetooth

FIS Part No : S017521

Cleaver tracking and upkeep with wireless communication
Automated wind protector, sheath clamps and splice operation
Fiber type identification
Loose and tight buffer with same sheath clamp
Lithium-ion battery with 300 splices/shrinks per charge
5 mm cleave length for small package needs
Multi-function transit case with integrated workstation

Variations :

Description
Specifications

The 90S is the latest core alignment splicer from Fujikura. It’s designed to give you high quality splices and to stay in the field. The 90S kit solves problems seen in the field today, from splicing poor quality legacy fiber to automated equipment maintenance and upkeep. The 90S can be utilized in any field splicing application seen today: bend-insensitive fibers in drop cables, long-haul terrestrial and submarine LEAF fibers, loose buffer fiber, splice on connectors, and the list goes on. The speed and accuracy of the 90S even make it suitable for certain production and specialty environments, where high output, tight packaging, and low loss requirements are needed. Regardless your use-case, the 90S is designed to keep you going with an extended battery life from 200 to 300 splice and heat cycles, and by alleviating the need for traditional operation tasks such as; frequent arc calibrations, cleaver blade rotations, cleaver usage tracking, and manual splicing operations with its multiple automated and ease-of-use features. A multi-purpose sheath clamp, redesigned work tray, cooling tray, and optional cable clamp make the 90S kit more versatile than any of its predecessors in adapting to varying work conditions and environments.

Cleaver tracking and upkeep with wireless communication
Automated wind protector, sheath clamps and splice operation
Fiber type identification
Loose and tight buffer with same sheath clamp
Lithium-ion battery with 300 splices/shrinks per charge
5 mm cleave length for small package needs
Multi-function transit case with integrated workstation

Includes: CT50 Cleaver, ADC-20 AC Adapter, ACC-14 AC Cord, BTR-15 Battery, ELCT2-16B Spare Electrodes (pair), Sheath Clamps, SP-03 Fiber Holder Set Plates, USB-01 Cable, Alcohol Dispenser, Splicer Carrying Strap, Quick Reference Guide, Work Tray J-Plate, SS03 single fiber stripper and CC39 Transit Case with Carrying Strap
