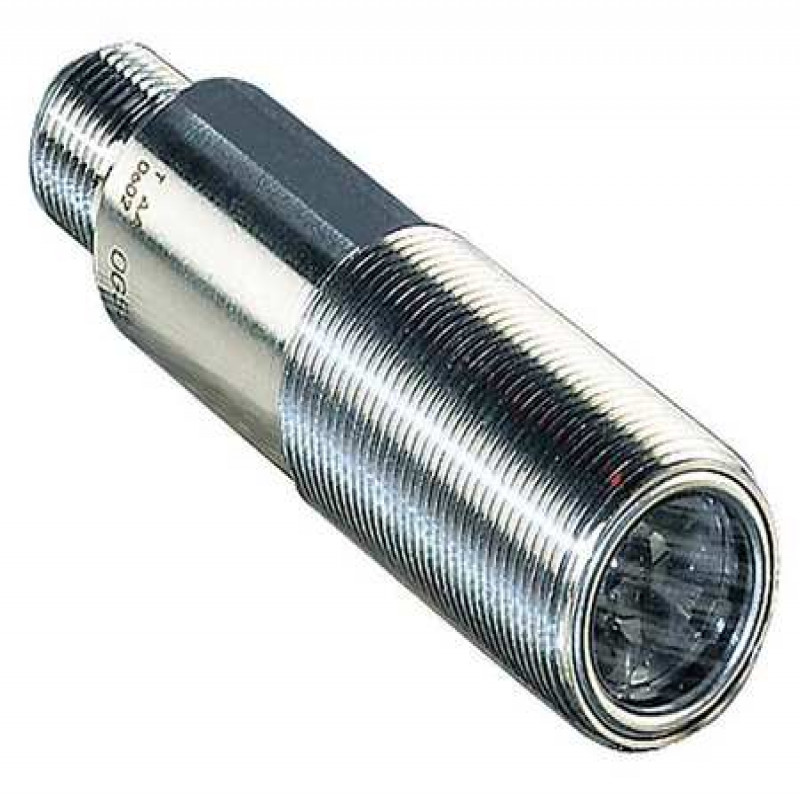

Photoelectric-Sensor-Cylinder-Reflective-OGP500

Photoelectric Sensor, Cylinder, Reflective

IFM Part No : OGP500

Item: Cylindrical Photoelectric Sensor

Circuit Type: PNP

IP Rating: 67

Description
Specifications

Cylindrical Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Retroreflective, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 10 to 36V DC, Electrical Connection - Cylindrical Photoelectric Sensor 4-Pin M12 Male Connector, Circuit Type - Cylindrical Photoelectric Sensor PNP, Max. Sensing Distance - Cylindrical Photoelectric Sensor 5.0 m

Circuit Type: PNP
IP Rating: 67
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Load Current: 200 mA
Operating Frequency: 2,000 Hz
Electrical Connection: Quick Disconnect M12 Connector
Power Requirement - Cylindrical Photoelectric Sensor: 10 to 36V DC
Electrical Connection - Cylindrical Photoelectric Sensor: 4-Pin M12 Male Connector
Sensing Method - Cylindrical Photoelectric Sensor: Retroreflective
Features: PMMA Lens, Reverse Polarity and Overload Protection
Length: 72.00mm
Standards: CE Approval, CUL Listed, UL Listed
Diameter: 18mm
Diameter - Cylindrical Photoelectric Sensor: 18 mm
Min. Object Size: 200mm dia Light Spot
Length - Cylindrical Photoelectric Sensor: 72 mm
Circuit Type - Cylindrical Photoelectric Sensor: PNP
Power Requirement: 10 to 36VDC
Shape: Cylindrical
Operating Temp. Range: -25 Degrees to 80 Degrees C
Max. Sensing Distance - Cylindrical Photoelectric Sensor: 5.0 m
Light Source: Red LED
Body Material: 316L Stainless Steel/1.4404, PA, LCP, EPDM, TPU (Urethane)

Photoelectric Sensor, Cylinder, Reflective
