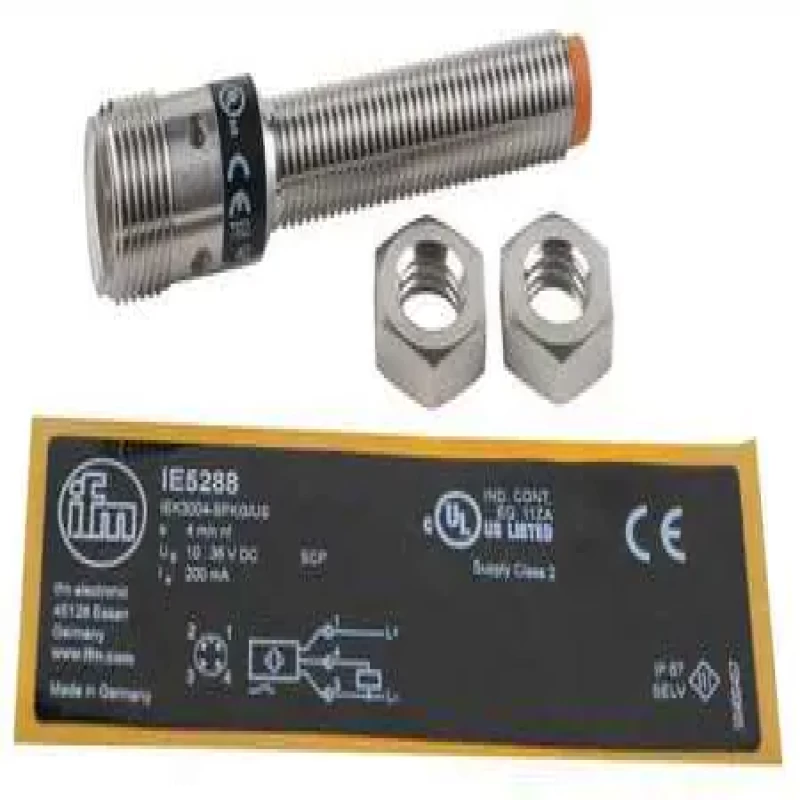

Proximity Sensor, Inductive, 4mm, PNP, NO

IFM Part No : IE5288

Item: Cylindrical Proximity Sensor
Proximity Sensing Method: Inductive
Proximity Sensor Power Requirement: 10 to 36V DC
Proximity Sensor Output Circuit Type: 3 Wire PNP
Output Mode: NO

Cylindrical Proximity Sensor, Inductive, 8.0 mm, Proximity Sensor Power Requirement 10 to 36V DC, Unshielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 4.0 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating 67, Case Material Brass White Bronze Coated, Length 62 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA


  • Item: Cylindrical Proximity Sensor
  • Proximity Sensing Method: Inductive
  • Proximity Sensor Power Requirement: 10 to 36V DC
  • Proximity Sensor Output Circuit Type: 3 Wire PNP
  • Output Mode: NO
  • Proximity Sensor Diameter: 8.0 mm
  • Length: 62 mm
  • Max. Detecting Distance: 4.0 mm
  • Proximity Sensor Electrical Connection: 4 Pin M12 Connector
  • Shielded / Unshielded: Unshielded
  • Basic Proximity Sensor Case Material: Metal
  • Proximity Sensor Operating Frequency: 300 Hz
  • Case Material: Brass White Bronze Coated
  • Description/Special Features: Overload And Short-Circuit Protection, Yellow LED Output Indication
  • IP Rating: 67
  • Max. Current Load: 200mA
  • Standards: CE Compliance
  • Includes: (2) Lock Nuts
  • Operating Temp. Range: -13 Degrees to 158 Degrees F
  • Length (Straight Wireway): 62 mm
