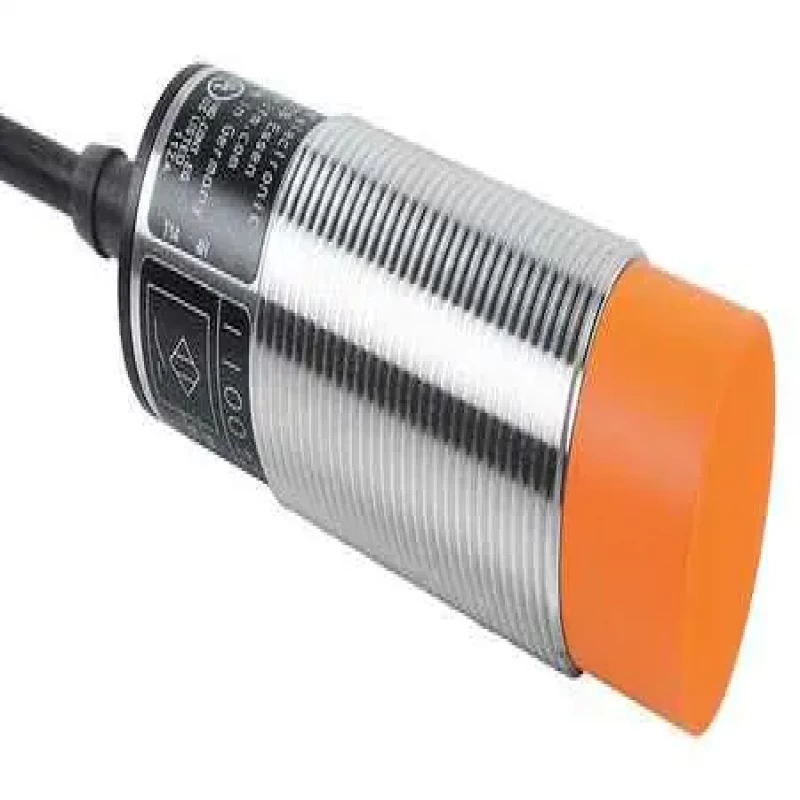

Proximity Sensor, Inductive, N.C., 15mm

IFM Part No : II0097

Item: Cylindrical Proximity Sensor
Proximity Sensing Method: Inductive
Proximity Sensor Power Requirement: 20 to 250V AC/DC
Proximity Sensor Output Circuit Type: 2 Wire
Output Mode: NC

Cylindrical Proximity Sensor, Inductive, 30.0 mm, Proximity Sensor Power Requirement 20 to 250V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/50 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 15.0 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, IP Rating 67, Case Material Nickel Plated Brass, Length 81 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 350/100mA


  • Item: Cylindrical Proximity Sensor
  • Proximity Sensing Method: Inductive
  • Proximity Sensor Power Requirement: 20 to 250V AC/DC
  • Proximity Sensor Output Circuit Type: 2 Wire
  • Output Mode: NC
  • Proximity Sensor Diameter: 30.0 mm
  • Length: 81 mm
  • Max. Detecting Distance: 15.0 mm
  • Proximity Sensor Electrical Connection: 2m Cable
  • Shielded / Unshielded: Unshielded
  • Basic Proximity Sensor Case Material: Metal
  • Case Material: Nickel Plated Brass
  • Proximity Sensor Operating Frequency: 25 Hz AC/50 Hz DC
  • IP Rating: 67
  • Includes: (2) Lock Nuts
  • Standards: CCC, CE Compliance
  • Operating Temp. Range: -13 Degrees to 176 Degrees F
  • Max. Current Load: 350/100mA
  • Description/Special Features: Non-Flush Mountable
