Photocntrl-Stem-and-Swivel-208-to-277VAC-K4253

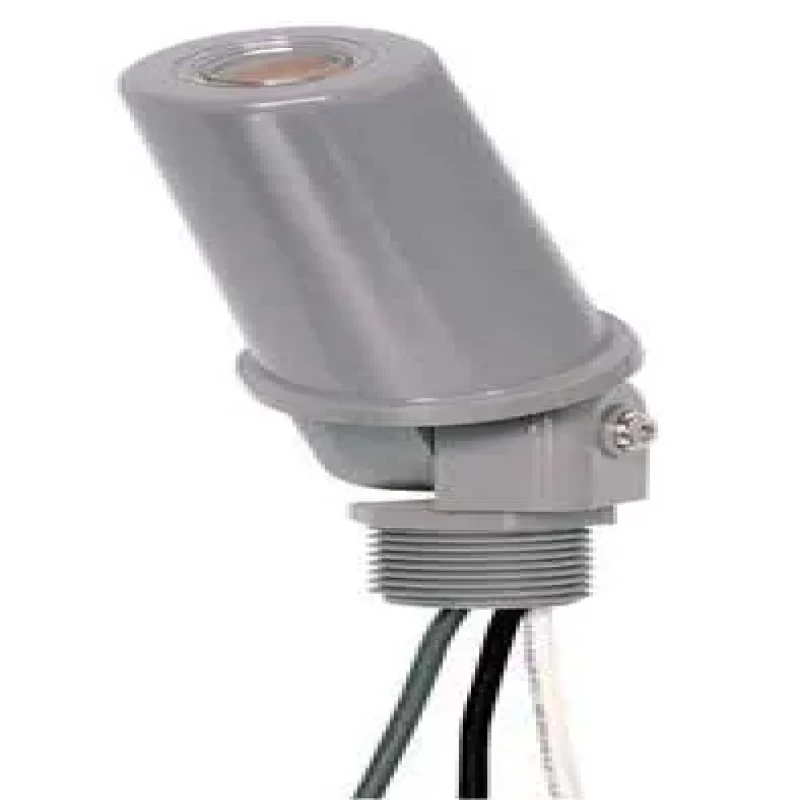

Photocntrl, Stem and Swivel, 208 to 277VAC

Intermatic Part No : K4253

Mounting: Stem and Swivel

For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting

Voltage: 208 to 277V AC

Description
Specifications

Photocontrol, Mounting Stem and Swivel, Voltage 208 to 277V AC, Max. Wattage 4,150, Max. Incandescent Amps 15.0, Max. Ballast Amps 8.3, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 5 1/2 in, Width 1 1/2 in, Depth 1 1/2 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards CSA, Includes Locking Nut, Washer Gasket

Mounting: Stem and Swivel
For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Voltage: 208 to 277V AC
Max. Wattage: 4,150
Max. Incandescent Amps: 15.0
Max. Ballast Amps: 8.3
Foot Candles On: 1.0 to 5.0
Foot Candles Off: 3 to 15
Color: Gray
Temp. Range: -40 Degrees to 158 Degrees F
Enclosure Type: Raintight
Contact Form: SPST
Length: 5 1/2 in
Depth: 1 1/2 in
Standards: CSA
Housing Material: Polycarbonate
Includes: Locking Nut, Washer Gasket
Setting: Dusk to Dawn
Width: 1 1/2 in
Manufacturers Warranty Length: 1 yr
Description/Special Features: Photo Eye Located On Top And Are Designed For Spot/flood Type Fixtures
