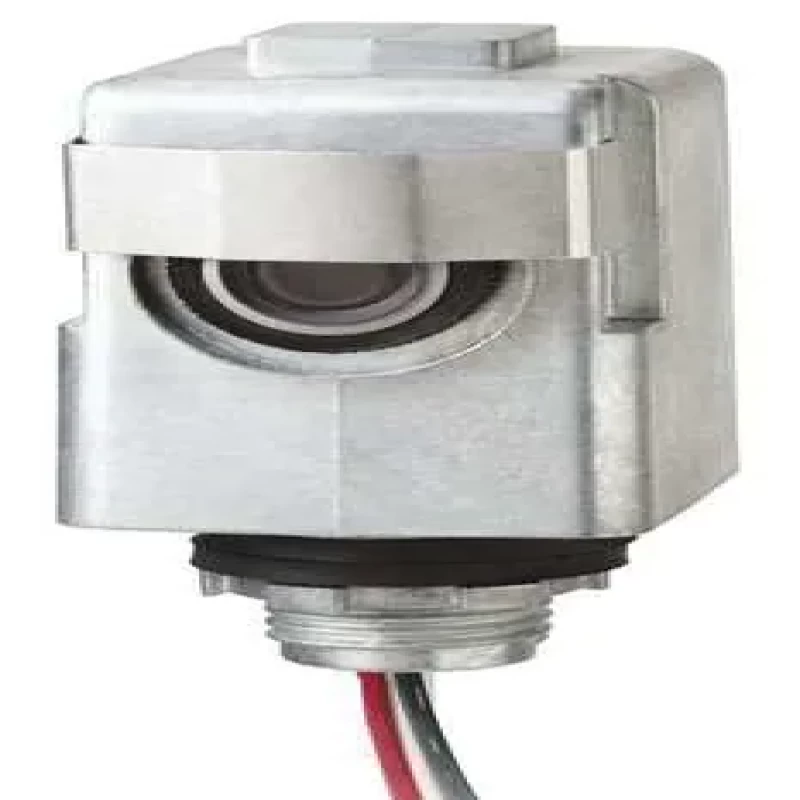

Photocontrol, 120VAC, 1800W, Stem

Intermatic Part No : K4421M

Mounting: Stem
For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Voltage: 120V AC
Max. Wattage: 1,800
Max. Incandescent Amps: 15.0

Photocontrol, Mounting Stem, Voltage 120V AC, Max. Wattage 1,800, Max. Incandescent Amps 15.0, Max. Ballast Amps 8.3, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 3 in, Width 1 9/16 in, Depth 1 9/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Die-Cast, Setting Dusk to Dawn, Standards CSA, cUL, Includes Locking Nut, Washer Gasket


  • Mounting: Stem
  • For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
  • Voltage: 120V AC
  • Max. Wattage: 1,800
  • Max. Incandescent Amps: 15.0
  • Max. Ballast Amps: 8.3
  • Foot Candles On: 1.0 to 5.0
  • Foot Candles Off: 3 to 15
  • Color: Gray
  • Temp. Range: -40 Degrees to 158 Degrees F
  • Standards: CSA, cUL
  • Manufacturers Warranty Length: 2 yr
  • Description/Special Features: Built-In Delay to Prevent Unwanted OFF Switching
  • Length: 3 in
  • Setting: Dusk to Dawn
