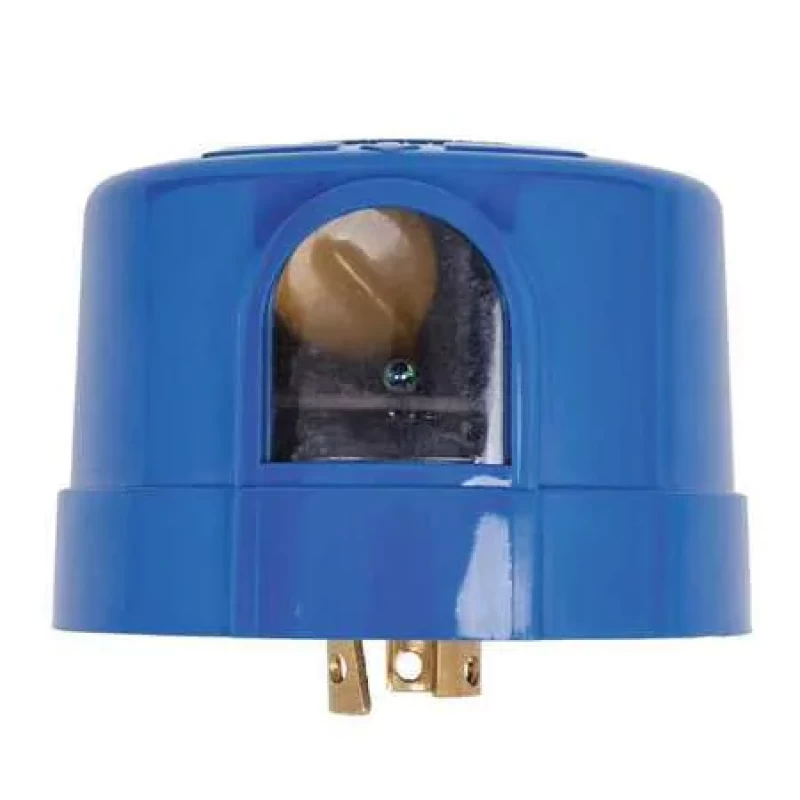

Photocontrol, Mounting Turn-Lock, Voltage 105 to 305V AC, Max. Wattage 1,800, Max. Incandescent Amps 15.0, Max. Ballast Amps 2.0, 1.5 Foot Candles On, 2.25 Foot Candles Off, Color Blue, Temp. Range -40 Degrees to 158 Degrees F, Length 2 7/32 in, Width 3 3/16 in, Depth 3 3/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Plastic, Setting Dusk to Dawn, Standards ANSI C136.10, ANSI/UL773,CSA, RoHS
Item: PhotocontrolFor Use With: LED Fixture, Parking Lot Lighting, Roadway LightingMounting: Turn-LockVoltage: 105 to 305V ACMax. Wattage: 1,800Max. Incandescent Amps: 15.0Max. Ballast Amps: 2.0Foot Candles On: 1.5Foot Candles Off: 2.25Color: BlueTemp. Range: -40 Degrees to 158 Degrees FDepth: 3 3/16 inDescription/Special Features: 10 yr Design Life, 5,000 ON/OFF Switching Cycles, LED RatedManufacturers Warranty Length: 6 yr
