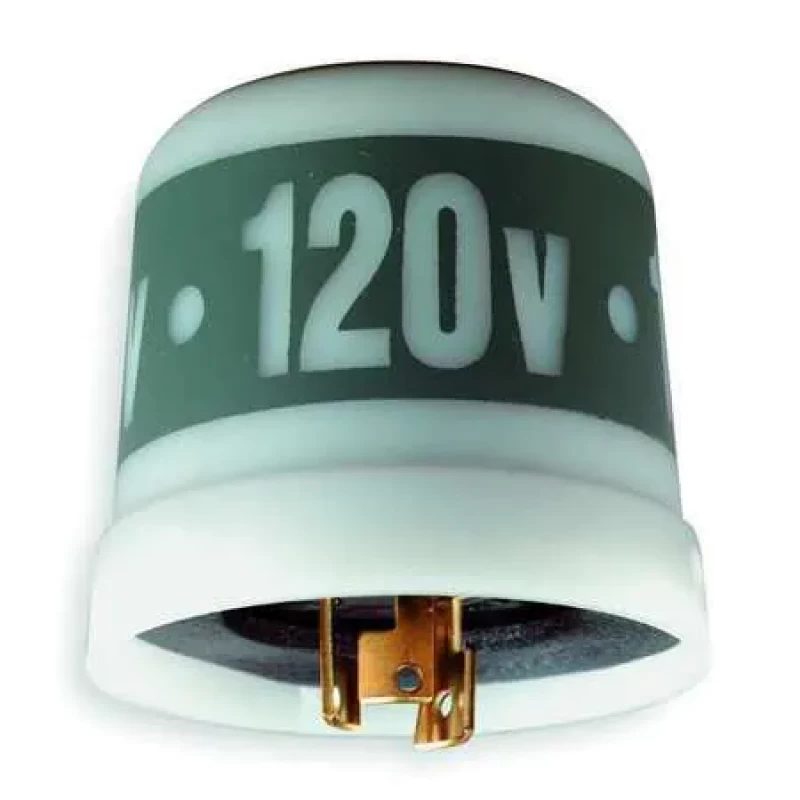

Photocontrol, Locking, 120VAC

Intermatic Part No : LC4521C

Mounting: Locking
For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Voltage: 120V AC

Photocontrol, Mounting Locking, Voltage 120V AC, Max. Wattage 1,800, Max. Incandescent Amps 15.0, Max. Ballast Amps 8.3, 0.5 Foot Candles On, 15 Foot Candles Off, Color White/Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 3/4 in, Width 3 in, Depth 3 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polypropylene, Setting Dusk to Dawn, Standards CSA, UL

  • Mounting: Locking
  • For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
  • Voltage: 120V AC
  • Max. Wattage: 1,800
  • Max. Incandescent Amps: 15.0
  • Max. Ballast Amps: 8.3
  • Foot Candles On: 0.5
  • Foot Candles Off: 15
  • Color: White/Gray
  • Temp. Range: -40 Degrees to 158 Degrees F
  • Width: 3 in
  • Depth: 3 in
  • Length: 2 3/4 in
  • Setting: Dusk to Dawn
  • Contact Form: SPST
  • Enclosure Type: Raintight
  • Standards: CSA, UL
  • Manufacturers Warranty Length: 2 yr
  • Housing Material: Polypropylene
  • Description/Special Features: Built in Delay
  • Length (Straight Wireway): 2 3/4 in
