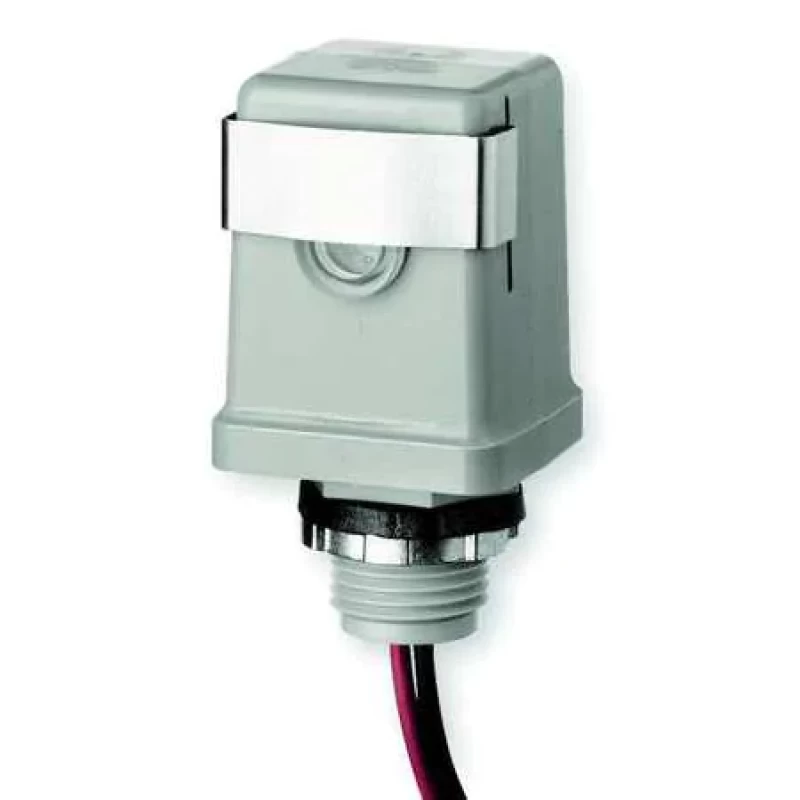

Photocontrol, Stem, 208 to 277VAC

Intermatic Part No : K4123C

Mounting: Stem
For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Voltage: 208 to 277V AC

Photocontrol, Mounting Stem, Voltage 208 to 277V AC, Max. Wattage 4,150, Max. Incandescent Amps 15.0, Max. Ballast Amps 8.3, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color White/Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 5/16 in, Width 1 9/16 in, Depth 1 9/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polypropylene, Setting Dusk to Dawn, Standards CSA, UL, Includes Locking Nut, Washer Gasket


  • Mounting: Stem
  • For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
  • Voltage: 208 to 277V AC
  • Max. Wattage: 4,150
  • Max. Incandescent Amps: 15.0
  • Max. Ballast Amps: 8.3
  • Foot Candles On: 1.0 to 5.0
  • Foot Candles Off: 3 to 15
  • Color: White/Gray
  • Temp. Range: -40 Degrees to 158 Degrees F
  • Includes: Locking Nut, Washer Gasket
  • Contact Form: SPST
  • Depth: 1 9/16 in
  • Width: 1 9/16 in
  • Length: 2 5/16 in
  • Enclosure Type: Raintight
  • Description/Special Features: 1/2 in Threaded with Light Level Shield with Built in Delay
