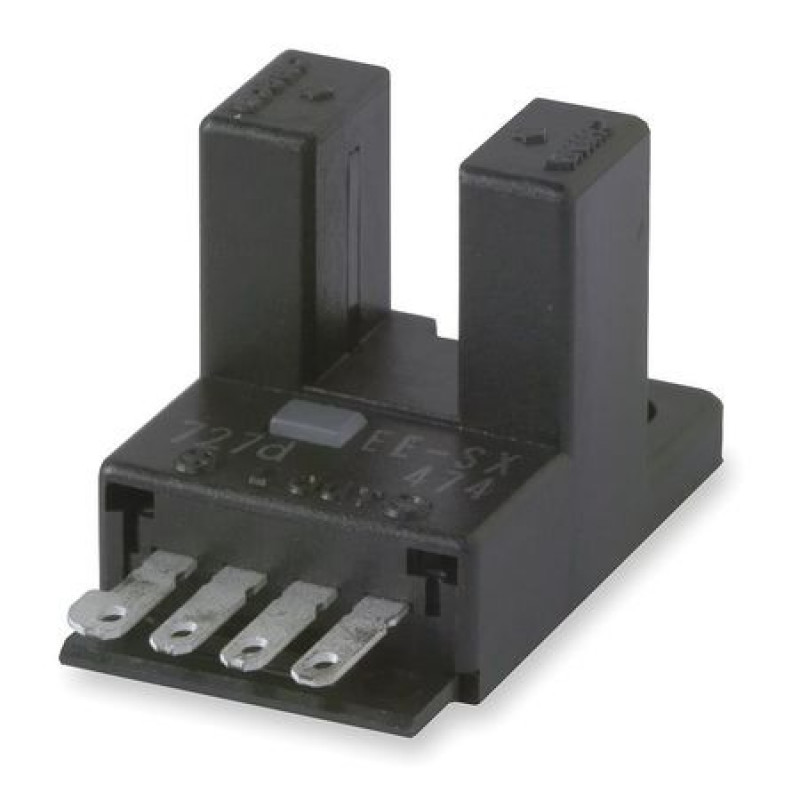

Photoelectric-Sensor-Close-Mnt-Thru-Beam-EE-SX474

Photoelectric Sensor, Close-Mnt, Thru-Beam

Omron Part No : EE-SX474

Item: Photoelectric Sensor

IP Rating: 50

Circuit Type: NPN

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Close Mounting, Sensing Method - Rectangular Photoelectric Sensor Through Beam, Power Requirement - Rectangular Photoelectric Sensor 5 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor NPN, Operating Mode - Photoelectric Sensor Light On, Max. Sensing Distance - Rectangular Photoelectric Sensor 5 mm, Electrical Connection - Rectangular Photoelectric Sensor Solder Terminal

Item: Photoelectric Sensor
IP Rating: 50
Circuit Type: NPN
Sensing Method - Rectangular Photoelectric Sensor: Through Beam
Power Requirement - Rectangular Photoelectric Sensor: 5 to 24V DC
Output Circuit Type - Rectangular Photoelectric Sensor: NPN
Width: 0.54"
Depth: 0.61"
Operating Mode - Photoelectric Sensor: Light On
Max. Load Current: 100 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor: 5 mm
Operating Frequency: 1,000 Hz
Electrical Connection - Rectangular Photoelectric Sensor: Solder Terminal
Height - Rectangular Photoelectric Sensor: 13 mm
Electrical Connection: Spade
Operation Mode: Light On
Shape: Close-Mounting
Body Material: PBT
Depth - Rectangular Photoelectric Sensor: 15 mm
Width - Rectangular Photoelectric Sensor: 14 mm
Features: Output Short-Cut And Output Reverse Polarity Protection, Surge Suppressor
Sensing Method: Through Beam
Min. Object Size: 2 x 0.80mm Opaque
Max. Sensing Distance: 5mm
Operating Temp. Range: -25 Degrees to 55 Degrees C
Standards: CE Approval, CSA Certified, UL Listed
Power Requirement: 5 to 24VDC
Length: 0.51"

Photoelectric Sensor, Close-Mnt, Thru-Beam
