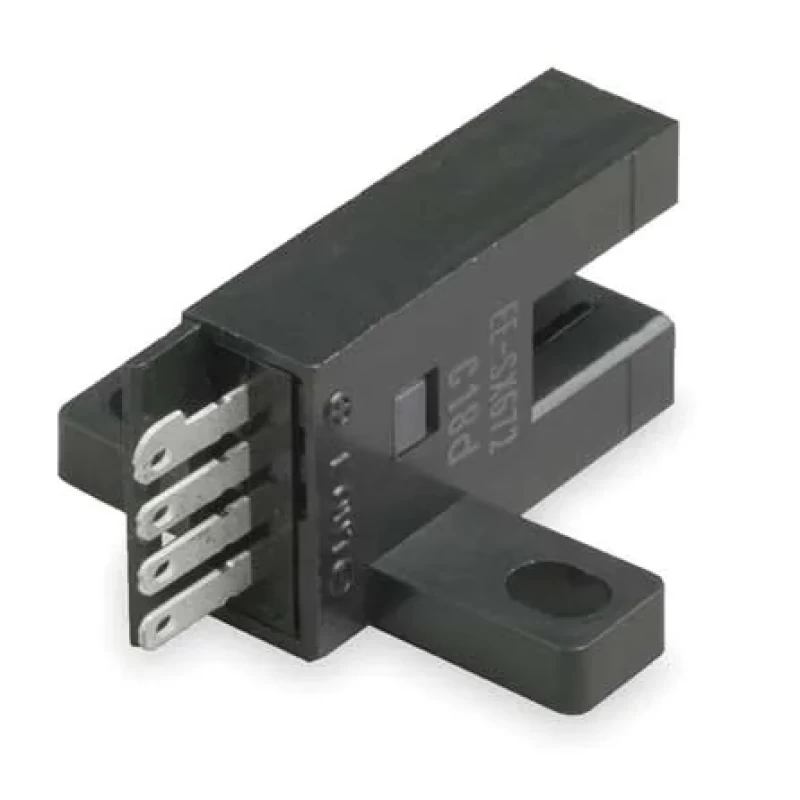

Photoelectric-Sensor-T-Slot-Thru-Beam-EE-SX672P

Photoelectric Sensor, T-Slot, Thru-Beam

Omron Part No : EE-SX672P

Item: Photoelectric Sensor

IP Rating: 50

Sensing Method - Rectangular Photoelectric Sensor: Through Beam

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor T-Slot, Sensing Method - Rectangular Photoelectric Sensor Through Beam, Power Requirement - Rectangular Photoelectric Sensor 5 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 5 mm, Electrical Connection - Rectangular Photoelectric Sensor Solder Terminal

IP Rating: 50
Sensing Method - Rectangular Photoelectric Sensor: Through Beam
Circuit Type: PNP
Power Requirement - Rectangular Photoelectric Sensor: 5 to 24V DC
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Width: 0.75"
Depth: 1.11"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Load Current: 50 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor: 5 mm
Electrical Connection - Rectangular Photoelectric Sensor: Solder Terminal
Operating Frequency: 1,000 Hz
Height - Rectangular Photoelectric Sensor: 26 mm
Electrical Connection: Spade
Depth - Rectangular Photoelectric Sensor: 28 mm
Features: No Incident Light, Operation Indicator Will Turn On When the Light Is Interrupted, Polycarbonate Cover and Emitter/Receiver
Body Material: PBT

Photoelectric Sensor, T-Slot, Thru-Beam
