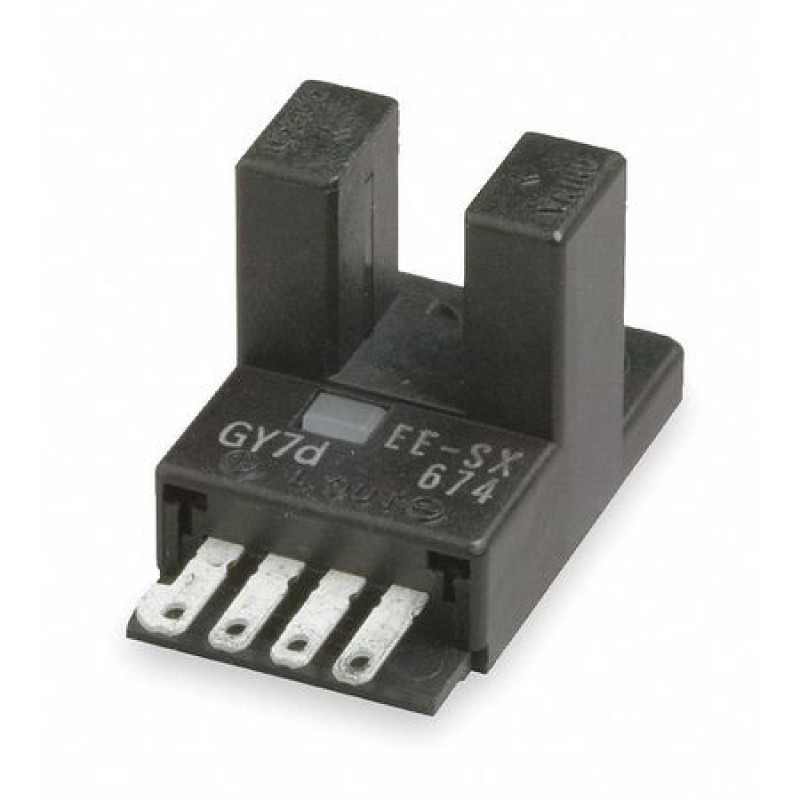

Photoelectric-Sensor-Close-Mnt-Thru-Beam-EE-SX674P

Photoelectric Sensor, Close Mnt, Thru-Beam

Omron Part No : EE-SX674P

Item: Photoelectric Sensor

IP Rating: 50

Circuit Type: PNP

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Close Mounting, Sensing Method - Rectangular Photoelectric Sensor Through Beam, Power Requirement - Rectangular Photoelectric Sensor 5 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 5 mm, Electrical Connection - Rectangular Photoelectric Sensor Solder Terminal

IP Rating: 50
Circuit Type: PNP
Sensing Method - Rectangular Photoelectric Sensor: Through Beam
Power Requirement - Rectangular Photoelectric Sensor: 5 to 24V DC
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Width: 0.54"
Depth: 0.61"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Sensing Distance - Rectangular Photoelectric Sensor: 5 mm
Max. Load Current: 50 mA
Operating Frequency: 1 kHz
Electrical Connection - Rectangular Photoelectric Sensor: Solder Terminal
Height - Rectangular Photoelectric Sensor: 15.5 mm
Electrical Connection: Spade
Length: 0.51"
Min. Object Size: 2 x 0.80mm Opaque
Power Requirement: 5 to 24VDC
Sensing Method: Through Beam
Shape: Close-Mounting
Operation Mode: Selectable Light On/Dark On
Depth - Rectangular Photoelectric Sensor: 13.6 mm
Features: No Incident Light, Operation Indicator Will Turn On When the Light Is Interrupted, Polycarbonate Cover and Emitter/Receiver
Standards: CE Approval, CSA Certified, UL Listed
Max. Sensing Distance: 5mm
Operating Temp. Range: -25 Degrees to 55 Degrees C
Body Material: PBT
Light Source: Infrared LED

Photoelectric Sensor, Close Mnt, Thru-Beam
