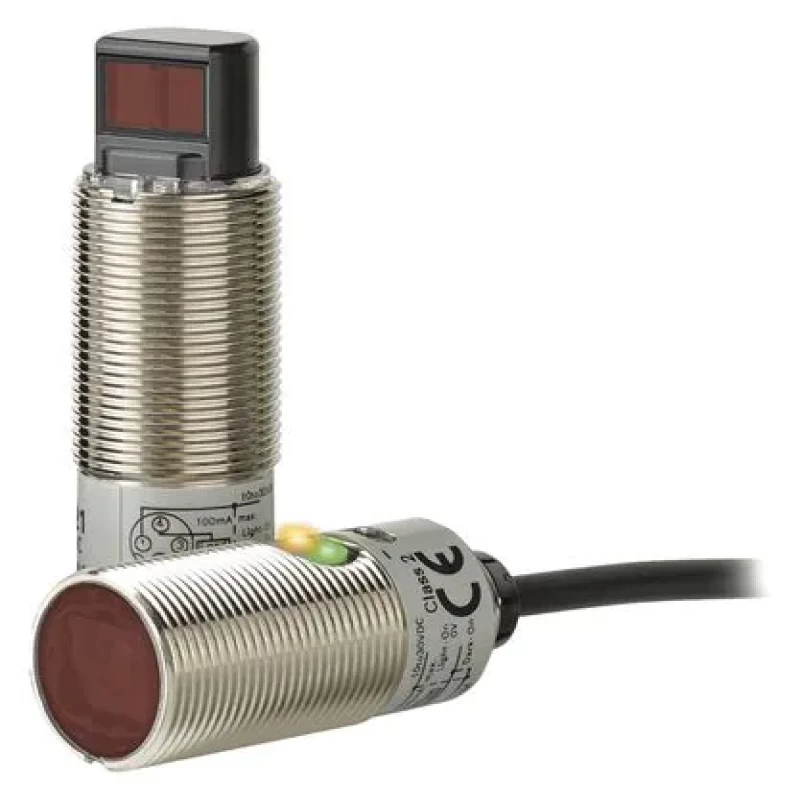

Photoelectric-Sensor-Cylinder-Thru-Beam-E3FB-TP21

Photoelectric Sensor, Cylinder, Thru-Beam

Omron Part No : E3FB-TP21

Item: Cylindrical Photoelectric Sensor

IP Rating: 69K

Width: 0.75"

Description
Specifications

Cylindrical Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Through Beam Set, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 5 to 30V DC, Electrical Connection - Cylindrical Photoelectric Sensor 4-Pin M12 Male Connector, Circuit Type - Cylindrical Photoelectric Sensor PNP, Max. Sensing Distance - Cylindrical Photoelectric Sensor 100 mm

Item: Cylindrical Photoelectric Sensor
IP Rating: 69K
Width: 0.75"
Depth: 3.25"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Load Current: 100 mA
Electrical Connection: M12 Connector
Power Requirement: 5 to 30VDC
Standards: CE Approval
Operation Mode: Selectable Light On/Dark On
Length - Cylindrical Photoelectric Sensor: 45 mm
Response Time: 0.5 msec
Shape: Cylindrical
Min. Object Size: 75mm dia Opaque
Light Source: Red LED
Diameter: 18mm
Body Material: Nickel Plated Brass
NEMA Rating: IP69K
Power Requirement - Cylindrical Photoelectric Sensor: 5 to 30V DC
Circuit Type - Cylindrical Photoelectric Sensor: PNP
Length: 45mm
Sensing Method - Cylindrical Photoelectric Sensor: Through Beam Set
Diameter - Cylindrical Photoelectric Sensor: 18 mm
Operating Temp. Range: -25 Degrees to 55 Degrees C
Features: High Power Red LED for Easy Sensor Alignment and Dependable Outputs In Dusty Environments
Max. Sensing Distance - Cylindrical Photoelectric Sensor: 100 mm
Electrical Connection - Cylindrical Photoelectric Sensor: 4-Pin M12 Male Connector
Sensing Method: Through Beam

Photoelectric Sensor, Cylinder, Thru-Beam
