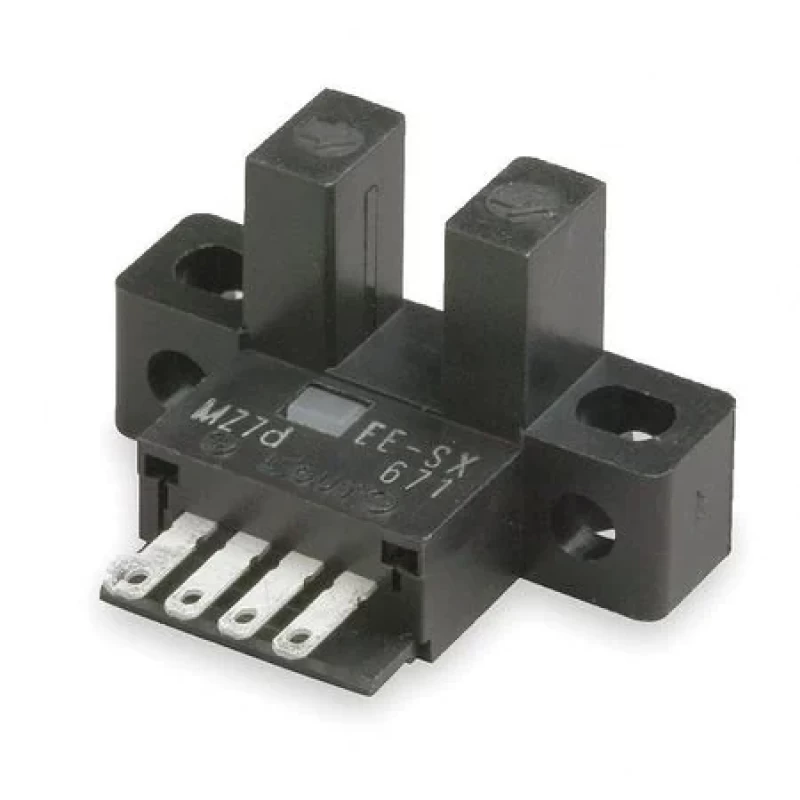

Photoelectric-Sensor-L-Slot-Thru-Beam-EE-SX671P

Photoelectric Sensor, L-Slot, Thru-Beam

Omron Part No : EE-SX671P

Item: Photoelectric Sensor

IP Rating: 50

Sensing Method - Rectangular Photoelectric Sensor: Through Beam

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor L-Slot, Sensing Method - Rectangular Photoelectric Sensor Through Beam, Power Requirement - Rectangular Photoelectric Sensor 5 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 5 mm, Electrical Connection - Rectangular Photoelectric Sensor Solder Terminal

IP Rating: 50
Sensing Method - Rectangular Photoelectric Sensor: Through Beam
Circuit Type: PNP
Power Requirement - Rectangular Photoelectric Sensor: 5 to 24V DC
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Width: 0.25"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Depth: 0.63"
Max. Sensing Distance - Rectangular Photoelectric Sensor: 5 mm
Max. Load Current: 50 mA
Operating Frequency: 1,000 Hz
Electrical Connection - Rectangular Photoelectric Sensor: Solder Terminal
Electrical Connection: Spade
Height - Rectangular Photoelectric Sensor: 26 mm
Width - Rectangular Photoelectric Sensor: 6 mm
Shape: L-Slot
Operation Mode: Selectable Light On/Dark On
Min. Object Size: 2 x 0.80mm Opaque
Features: No Incident Light, Operation Indicator Will Turn On When the Light Is Interrupted, Polycarbonate Cover and Emitter/Receiver
Power Requirement: 5 to 24VDC
Light Source: Infrared LED
Max. Sensing Distance: 5mm
Operating Temp. Range: -25 Degrees to 55 Degrees C
Length: 1.03"
Standards: CE Approval, CSA Certified, UL Listed
Sensing Method: Through Beam
Body Material: PBT

Photoelectric Sensor, L-Slot, Thru-Beam
