Photoelectric-Sensor-Rectangular-PNP-E3X-MDA41

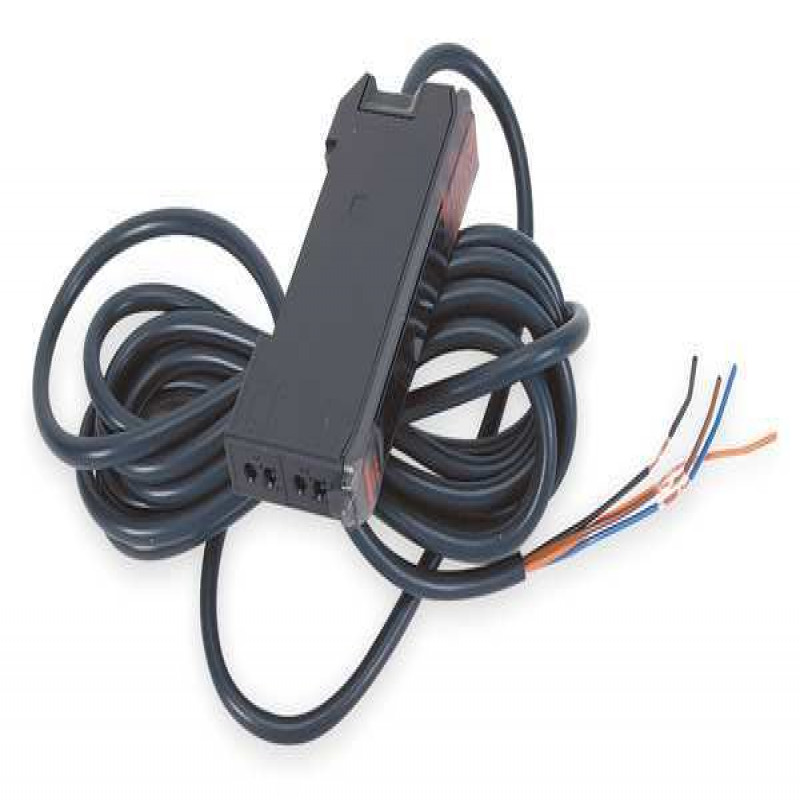

Photoelectric Sensor, Rectangular, PNP

Omron Part No : E3X-MDA41

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Rectangular, Power Requirement - Rectangular Photoelectric Sensor 12 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor Dependent on Fiber Cable Attached, Electrical Connection - Rectangular Photoelectric Sensor 2m Cable, Height - Rectangular Photoelectric Sensor 32 mm

Description
Specifications

Item: Photoelectric Sensor
Circuit Type: PNP
IP Rating: 50
Power Requirement - Rectangular Photoelectric Sensor: 12 to 24V DC
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Width: 0.39"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Depth: 2.75"
Max. Load Current: 50 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor: Dependent on Fiber Cable Attached
Electrical Connection - Rectangular Photoelectric Sensor: 2m Cable
Height - Rectangular Photoelectric Sensor: 32 mm
Electrical Connection: 2m cable
Body Material: PBT
Operating Temp. Range: -25 Degrees to 55 Degrees C
Features: Output Short-Cut And Output Reverse Polarity Protection, Surge Suppressor
Width - Rectangular Photoelectric Sensor: 10 mm
Length: 1.26"
Depth - Rectangular Photoelectric Sensor: 70 mm
Operation Mode: Selectable Light On/Dark On
Shape: Rectangular
Response Time: 0.1 msec
Light Source: Red LED
Power Requirement: 12 to 24VDC

Photoelectric Sensor, Rectangular, PNP
