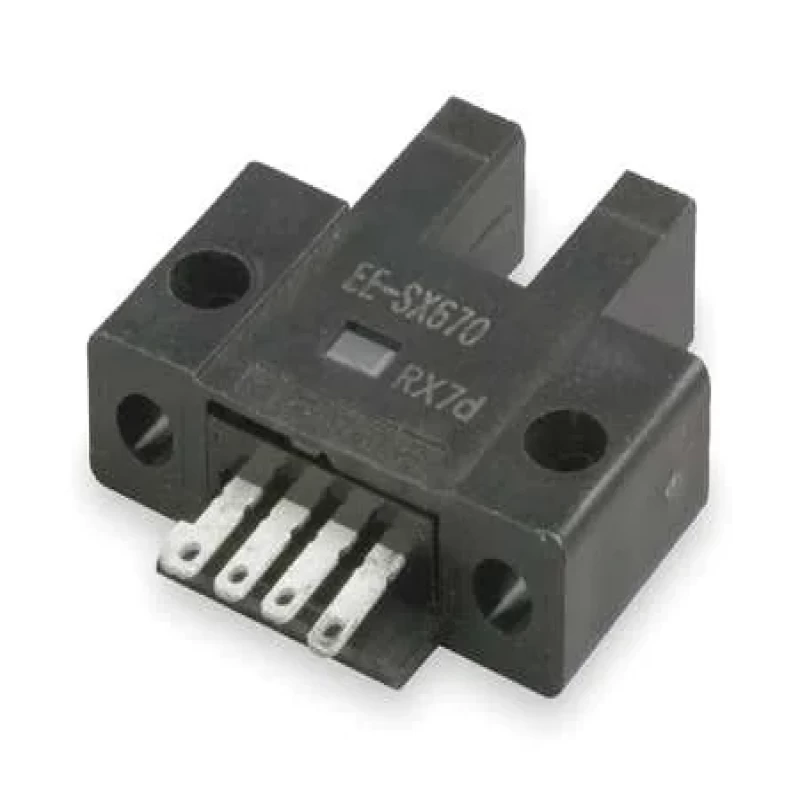

Photoelectric-Sensor-Stndrd-Slt-ThruBeam-EE-SX670P

Photoelectric Sensor, Stndrd Slt, ThruBeam

Omron Part No : EE-SX670P

Item: Photoelectric Sensor

Circuit Type: PNP

Sensing Method - Rectangular Photoelectric Sensor: Through Beam

Description
Specifications

Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Standard Slot, Sensing Method - Rectangular Photoelectric Sensor Through Beam, Power Requirement - Rectangular Photoelectric Sensor 5 to 24V DC, Output Circuit Type - Rectangular Photoelectric Sensor PNP, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 5 mm, Electrical Connection - Rectangular Photoelectric Sensor Solder Terminal

Circuit Type: PNP
Sensing Method - Rectangular Photoelectric Sensor: Through Beam
IP Rating: 50
Power Requirement - Rectangular Photoelectric Sensor: 5 to 24V DC
Width: 0.25"
Output Circuit Type - Rectangular Photoelectric Sensor: PNP
Depth: 1.11"
Operating Mode - Photoelectric Sensor: Selectable Light On/Dark On
Max. Load Current: 50 mA
Max. Sensing Distance - Rectangular Photoelectric Sensor: 5 mm
Electrical Connection - Rectangular Photoelectric Sensor: Solder Terminal
Operating Frequency: 1,000 Hz
Height - Rectangular Photoelectric Sensor: 25 mm
Electrical Connection: Spade
Sensing Method: Through Beam
Depth - Rectangular Photoelectric Sensor: 28 mm
Light Source: Infrared LED
Standards: CE Approval, CSA Certified, UL Listed
Shape: Standard Slot
Min. Object Size: 2 x 0.80mm Opaque
Body Material: PBT
Power Requirement: 5 to 24VDC
Max. Sensing Distance: 5mm
Operating Temp. Range: -25 Degrees to 55 Degrees C
Operation Mode: Selectable Light On/Dark On
Features: Output Short-Cut And Output Reverse Polarity Protection, Surge Suppressor
Width - Rectangular Photoelectric Sensor: 6 mm

Photoelectric Sensor, Stndrd Slt, ThruBeam
