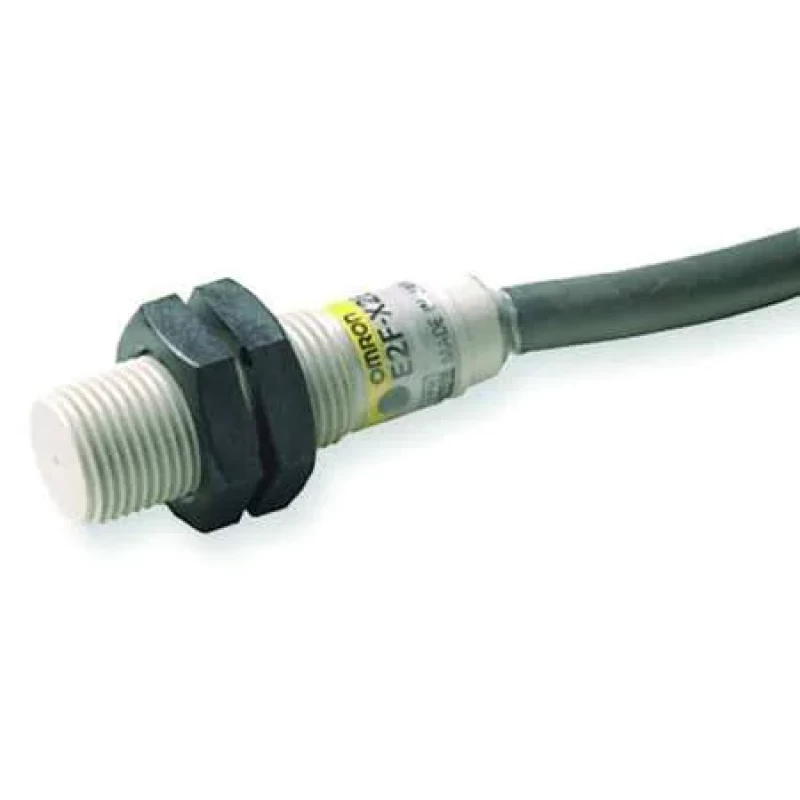

Proximity Sensor, Inductive, 8mm, NO

Omron Part No : E2F-X1R5Y1

Item: Cylindrical Proximity Sensor

Proximity Sensor Style: Cylindrical Proximity Sensor

Proximity Sensing Method: Inductive

Cylindrical Proximity Sensor, Inductive, 8.0 mm, Proximity Sensor Power Requirement 24 to 240V AC, Shielded, Proximity Sensor Operating Frequency 25 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 1.5 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 1, 12, 13, 3, 4, 6, IP Rating 68, Case Material Plastic, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA

  • Item: Cylindrical Proximity Sensor
  • Proximity Sensor Style: Cylindrical Proximity Sensor
  • Proximity Sensing Method: Inductive
  • Proximity Sensor Power Requirement: 24 to 240V AC
  • Proximity Sensor Output Circuit Type: 2 Wire
  • Output Mode: NO
  • Proximity Sensor Diameter: 8.0 mm
  • Length: 41 mm
  • Max. Detecting Distance: 1.5 mm
  • Proximity Sensor Electrical Connection: 2m Cable
  • Shielded / Unshielded: Shielded
  • Basic Proximity Sensor Case Material: Plastic
  • Case Material: Plastic
  • Proximity Sensor Operating Frequency: 25 Hz
  • Description/Special Features: LED Indication, Short-Circuit Protection
  • Operating Temp. Range: -13 Degrees to 158 Degrees F
  • NEMA Rating: 1, 12, 13, 3, 4, 6
  • Max. Current Load: 200mA
  • IP Rating: 68
  • Standards: CE Compliance
  • Includes: Instruction Manual
  • Length (Straight Wireway): 41 mm
