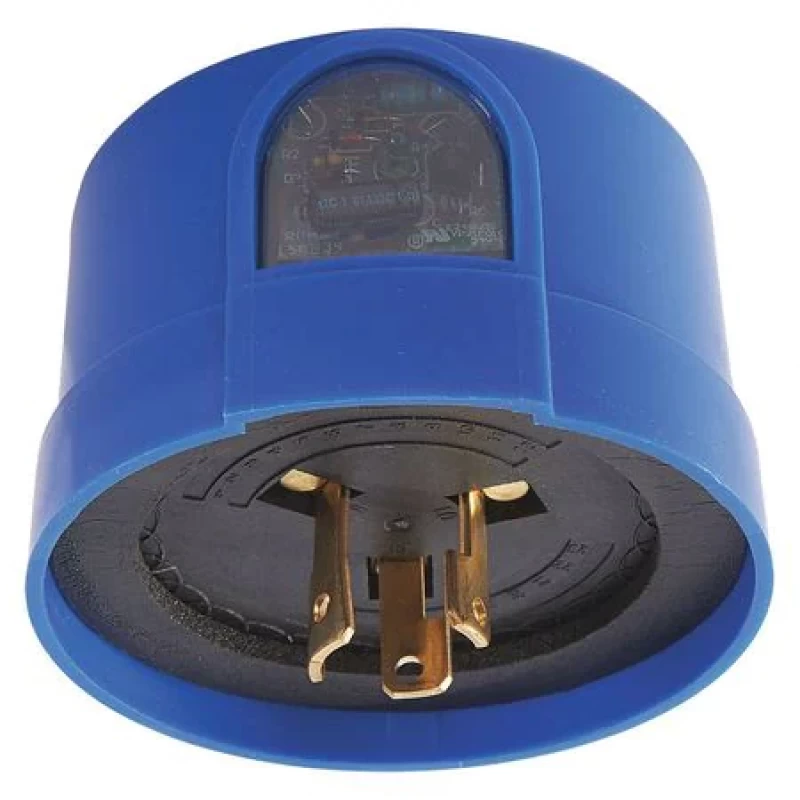

Photocontrol, Turn-Lock, 120 to 277VAC

Intermatic Part No : LC2100

For Use With: Area Lighting, Car Lot Lighting, Parking Lot Lighting, Security Lighting
Mounting: Turn-Lock
Voltage: 120 to 277V AC

Photocontrol, Mounting Turn-Lock, Voltage 120 to 277V AC, Max. Wattage 1,000, Max. Incandescent Amps 15.0, Max. Ballast Amps 15.0, 1.5 Foot Candles On, 6 Foot Candles Off, Color Blue, Temp. Range -40 Degrees to 158 Degrees F, Length 3 1/4 in, Width 3 1/4 in, Depth 3 1/4 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards ANSI C136.10, UL

  • For Use With: Area Lighting, Car Lot Lighting, Parking Lot Lighting, Security Lighting
  • Mounting: Turn-Lock
  • Voltage: 120 to 277V AC
  • Max. Wattage: 1,000
  • Max. Incandescent Amps: 15.0
  • Max. Ballast Amps: 15.0
  • Foot Candles On: 1.5
  • Foot Candles Off: 3 to 10
  • Color: Blue
  • Temp. Range: -40 Degrees to 158 Degrees F
  • Setting: Dusk to Dawn
  • Manufacturers Warranty Length: 2 yr
  • Description/Special Features: Built in Delay
  • Enclosure Type: Raintight
  • Length: 3 1/4 in
  • Housing Material: Polycarbonate
  • Standards: ANSI C136.10, UL
  • Depth: 3 1/4 in
  • Contact Form: SPST
  • Width: 3 1/4 in
  • Length (Straight Wireway): 3 1/4 in
