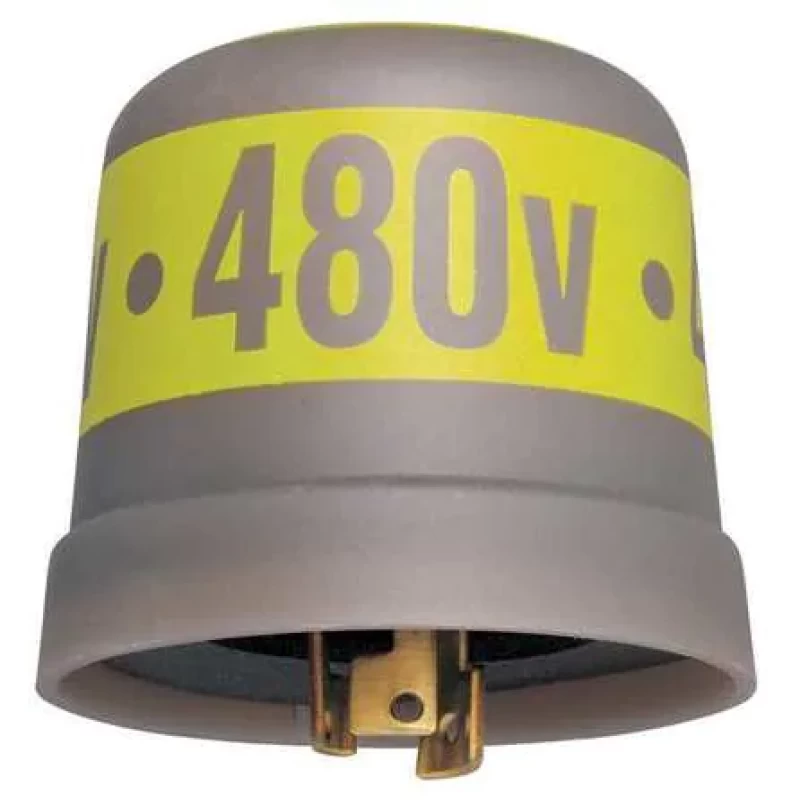

Photocontrol, Twist Lock, 480VAC

Intermatic Part No : LC4535LA

Item: Photocontrol
Mounting: Turn-Lock
For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Voltage: 480V AC

Photocontrol, Mounting Turn-Lock, Voltage 480V AC, Max. Wattage 7,200, Max. Incandescent Amps 15.0, Max. Ballast Amps 8.3, 0.5 Foot Candles On, 15 Foot Candles Off, Color Translucent/Yellow, Temp. Range -20 Degrees to 104 Degrees F, Length 2 3/4 in, Width 3 in, Depth 3 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polypropylene, Setting Dusk to Dawn, Standards ANSI C136.10


  • Item: Photocontrol
  • Mounting: Turn-Lock
  • For Use With: Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
  • Voltage: 480V AC
  • Max. Wattage: 7,200
  • Max. Incandescent Amps: 15.0
  • Max. Ballast Amps: 8.3
  • Foot Candles On: 0.5
  • Foot Candles Off: 15
  • Color: Translucent/Yellow
  • Temp. Range: -20 Degrees to 104 Degrees F
  • Length: 2 3/4 in
  • Standards: ANSI C136.10
  • Contact Form: SPST
  • Description/Special Features: 2400 Volt Open Type Spark Gap Arrester, UV Protection Keeps Moisture Out And Esnures Long Life
  • Depth: 3 in
